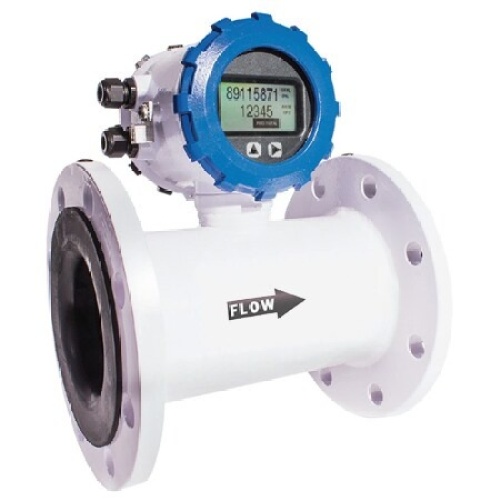

Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
Code: 778985
Omega FMG480-10-D6 10"MAGMETER,DISPLAY,(P)+(I)OUTPUT,DC60Hz
Normally In Stock
Omega FMG480-10-D6 10"MAGMETER,DISPLAY,(P)+(I)OUTPUT,DC60Hz
Condition: New
Usually ships Same Day or Next Day$6651.76
Sale Price
$5543.13
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Magmeter, Conductive Fluids, 8031 GPM, 10 MPS, 10 ", ANSI Flange, ± 0.75 %, Current Sinking Pulse, 4 mA to 20 mA, 316 SS, PP, EPDM, 9 Vdc to 36 Vdc/60 Hz, FMG480 Series, Each
Specifications
(Instrument-Sensor) IP Protection
IP68
(Instrument-Sensor) NEMA Protection
NEMA 6P
Component
Electromagnetic Flow Meter
Manufacturer
Omega Engineering
(Instrument-Sensor) Medium
Acid Solutions
(Instrument-Sensor) Medium
Conductive Liquids
(Instrument-Sensor) Medium
Saltwater
(Instrument-Sensor) Supply Voltage
9-36 VDC / 60 Hz
Features
Easy setup
Minimal straight pipe
Mounted or remote rate & total
Tamper-evident seal
Accuracy± 0.75 %
ApprovalsCE
Battery Backup9 V Alkaline Battery
Cable Length50 ft
Conductivity> 20 µS/cm
Display Note128 x 64 dot-matrix LCD
Display TypeLCD
Empty Pipe DetectionHardware/software, conductivity-based
Enclosure RatingsIP68, NEMA 6P
Material Construction OptionN/A
MaterialsSteel, Epoxy, Aluminum
Media CompatibilityAcid Solutions, Conductive Liquids, Saltwater
Number of Digits8
Number of Outputs1
Operating Pressure, Max150 psi
Operating Temperature, Max60 °C
Operating Temperature, Min-12 °C
Output Detail4 to 20 mA
Output Pulse Rate, Max200 pulses/sec
Output SignalCurrent
Process Connection TypeANSI Flange
Pulse Rate NoteUser-scalable from 0.1 to 99,999.9 volume units/pulse. Pulse width is one-half of pulse period with minimum pulse width of 2.5 ms, 200 pulses/sec max. For battery option meters, pulse width varies with frequency, 150 pulses/sec max
Storage Temperature, Max70 °C
Storage Temperature, Min-40 °C
Velocity, Max10 m/s
