Code: 778974

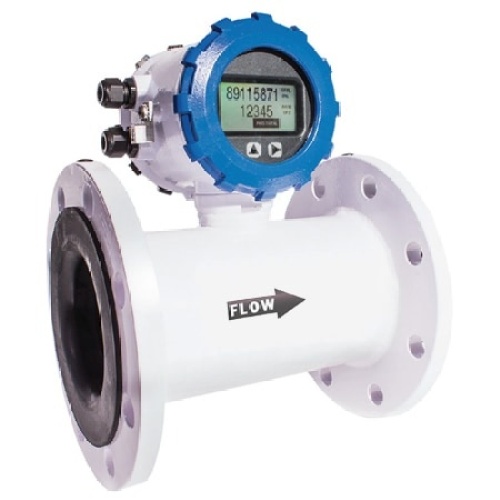

Omega FMG480-03-D6 3"MAGMETER,DISPLAY,(P)+(I)OUTPUT,DC60Hz
Normally In Stock
Omega FMG480-03-D6 3"MAGMETER,DISPLAY,(P)+(I)OUTPUT,DC60Hz
Condition: New
Usually ships Same Day or Next Day$5059.81
Sale Price
$4216.51
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Magmeter, Conductive Fluids, 723 GPM, 10 MPS, 3 ", ANSI Flange, ± 0.75 %, Current Sinking Pulse, 4 mA to 20 mA, 316 SS, Noryl, EPDM, 9 Vdc to 36 Vdc/60 Hz, FMG480 Series, Each
Specifications
(Instrument-Sensor) IP Protection
IP68
(Instrument-Sensor) NEMA Protection
NEMA 6P
Component
Electromagnetic Flow Meter
Manufacturer
Omega Engineering
(Instrument-Sensor) Medium
Acid Solutions
(Instrument-Sensor) Medium
Conductive Liquids
(Instrument-Sensor) Medium
Saltwater
(Instrument-Sensor) Supply Voltage
9-36 VDC / 60 Hz
Features
Easy setup
Minimal straight pipe
Mounted or remote rate & total
Tamper-evident seal
Accuracy± 0.75 %
ApprovalsCE
Battery Backup9 V Alkaline Battery
Cable Length50 ft
Conductivity> 20 µS/cm
Display Note128 x 64 dot-matrix LCD
Display TypeLCD
Empty Pipe DetectionHardware/software, conductivity-based
Enclosure RatingsIP68, NEMA 6P
Material Construction OptionN/A
MaterialsSteel, Epoxy, Aluminum
Media CompatibilityAcid Solutions, Conductive Liquids, Saltwater
Number of Digits8
Number of Outputs1
Operating Pressure, Max150 psi
Operating Temperature, Max60 °C
Operating Temperature, Min-12 °C
Output Detail4 to 20 mA
Output Pulse Rate, Max200 pulses/sec
Output SignalCurrent
Process Connection TypeANSI Flange
Pulse Rate NoteUser-scalable from 0.1 to 99,999.9 volume units/pulse. Pulse width is one-half of pulse period with minimum pulse width of 2.5 ms, 200 pulses/sec max. For battery option meters, pulse width varies with frequency, 150 pulses/sec max
Storage Temperature, Max70 °C
Storage Temperature, Min-40 °C
Velocity, Max10 m/s
