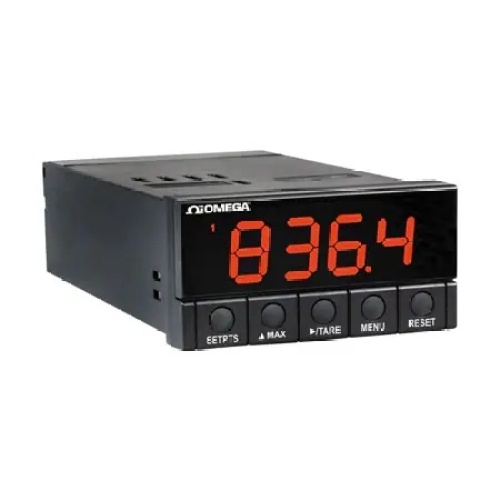

Omega DP25B-S STRAIN GAGE METER BIG DSPLY CE
Normally In Stock
Code: 778800
Omega DP25B-S STRAIN GAGE METER BIG DSPLY CE
Condition: New
Usually ships Same Day or Next Day$603.29
Sale Price
$502.74
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Strain Gage Panel Meter, 1/8 DIN, 3.5 Digit, 9-Segment Selectable Color LED Display, AC Supply, DP25B Series, Each
Specifications
Manufacturer
Omega Engineering
Component
Strain Meter
Supply Voltage
115 Vac
Sub Component
Strain Gage Panel Meter
Features
Big Bright LED Display
Scaling in Wide Range of Engineering Units
Built-In Excitation
Analog Output Optional
Accuracy± 0.02 %
Analog-to-Digital TechniqueDual slope
ApprovalsCE, EMC 2014/30/EU
CMRR120 dB
Cutout Dimensions1.772 x 3.622 in
Display Note4-digit, 9-segment, 21 mm (0.83") red, amber or green LED (programmable)
Display TypeLED
Form factor1/8 DIN
Height1.89 in
Impedance Input100 MΩ for 100 mV or ± 50 mV range
1 MΩ for 10V or ± 5V range
5 Ω for 20 mA current input
Input Range Note0 to 100 mV, ± 50 mV, 0 to 10V, ± 5V, 0 to 20 mA, 4 to 20 mA
Internal Resolution15 bit
IsolationDielectric strength to 2500V transient per 3 mm spacing based on EN 61010 for 260 Vrms or Vdc
Length6 in
MaterialsPolycarbonate
Max Error Strain/Process± 0.03%
Measurement TypeCurrent, Voltage
MountingPanel
NMRR60 dB
Number of Digits4
Number of Inputs1
Operating Temperature, Max50 °C
Operating Temperature, Min0 °C
PolarityAutomatic
Protection240 Vrms max for voltage input ranges
200 mA for current ranges
Reading Rate3/sec
Relative Humidity90% @ 40°C non-condensing
Sampling Rate3 Hz (3 updates/second)
Sensor Excitation24 Vdc @ 25 mA or 12V @ 50 mA
10V @ 120 mA or 5V @ 60 mA
Span Temperature Coefficient± 50 ppm/°C
Step Response2 s
Storage Temperature, Max85 °C
Storage Temperature, Min-40 °C
Supply Power Note240 Vrms overvoltage protection
Warm Up Time30 min
Weight36 g
Width3.78 in
