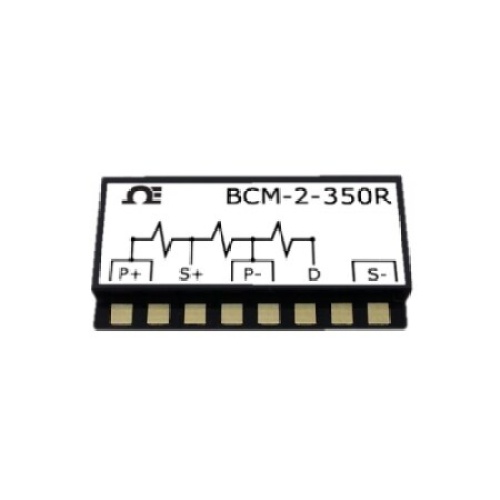

Omega BCM-2-350R 350 OHMS WHEATSTONE BRIDGE COMPLETION UN
Normally In Stock
Code: 778546
Omega BCM-2-350R 350 OHMS WHEATSTONE BRIDGE COMPLETION UN
Condition: New
Usually ships Same Day or Next Day$194.17
Sale Price
$161.81
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Strain gauges: strain gauge accessories, 350 OHMS WHEATSTONE BRIDGE COMPLETION UN
Specifications
Manufacturer
Omega Engineering
Component
Strain Gauge
Sub Component
Strain Gauge Accessories
Features
Easy to Use
Ultra Low TCR
Ultra High Precision, Accuracy, and Stability
Compact size
Bridge Resistance NoteMatched (R1 & R2) Tolerance: 0.01%
Capacitance1 pF
ESD Susceptibility>25 kV
Housing Height0.7 in
Housing Length1.2 in
Housing Width0.3 in
Inductance0.1 µH
Operating Temperature, Max125 °C
Operating Temperature, Min-45 °C
Power Coefficient Of Resistance± 5 ppm/W
Power Consumption0.6 W
Datasheet (PDF)"1/5/7/9/15797329b8fd22fce30d7a37809b6e12e1cfa3fa_DS_BCM_2_350R.pdf"
Resistance Tolerance± 0.02 %
Solder Pad Size0.08 in x 0.08 in
Stability<50 ppm 2000hr@100mW, <150 ppm after 10,000hrs
Temperature Coefficient of Resistance5 ppm/°C
Voltage Coefficient Of Resistance<0.1 ppm/V
