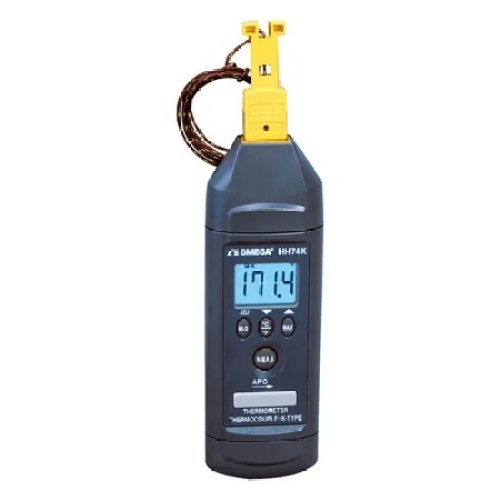

Omega HH74K K THERMOMETER CE
Normally In Stock
Code: 776986
Omega HH74K K THERMOMETER CE
Condition: New
Usually ships Same Day or Next Day$142.94
Sale Price
$119.12
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Handheld Thermometer with Magnet Hanger, Economical, K-type, 4.5 V (3 AAA), Miniature Connector, 1-CH, ± (0.3 % rdg + 1 °C), -100 °C, 850 °C, Each
Specifications
Component
Temperature Meter
Manufacturer
Omega Engineering
(Instrument-Sensor) Supply Voltage
4.5 Vdc
Features
Lightweight Design
MAX/DATA HOLD Function
Auto Power Off Function Can Be Disabled
Battery Life 300 Hrs. Typical Use
Additional Features 1Max/ HOLD Functions, Auto Power off, Adjustable Offset
ApplicationsArt and Museums, Environmental and Weather, Laboratories and Scientific, Office and Commercial
Battery Indication“+ -” is displayed when battery voltage drops below operating level
Battery life300 hr
Electrical ConnectionMiniature Male Thermocouple Connector
Height148 mm
Length24 mm
Measuring Temperature Range, Max850 °C
Measuring Temperature Range, Min-100 °C
Number of Channels1
Operating Temperature Note0 to 50°C (32 to 122°F) <70% RH
Sampling Rate2.5 Hz (2.5 updates/second)
Storage Temperature, Max60 °C
Storage Temperature, Min-20 °C
Storage Temperature Note-20 to 60°C (-4 to140°F), 0 to 80% RH with battery removed from meter
Supply Power NoteThree 1.5V “AAA” (included)
Supply Power TypeBattery
Supply Voltage4.5 Vdc
Temperature Accuracy± 0.3%
Temperature Accuracy NoteAccuracy (Does Not Include Probe):
18 to 28°C (64 to 82°F) ambient
± (0.3% rdg + 1°C) on °C ranges
± (0.3% rdg + 2°F) on °F ranges
Stated Accuracy:
23 ± 5°C (73 ± 9°F), <75% RH
Temperature Resolution0.1 °C
Temperature Resolution Note0.1°C -59.9 to 199.9°C
1°C -100 to -60°C
200 to 850°C
0.1°F -59.9 to 199.9°F
1°F -148 to -60°F
200 to 1562°F
Temperature Sensor TypeThermocouple
Thermocouple TypeK
Weight74 g
Weight NoteApproximately 74 g (2.6 oz) with battery
Width48 mm
