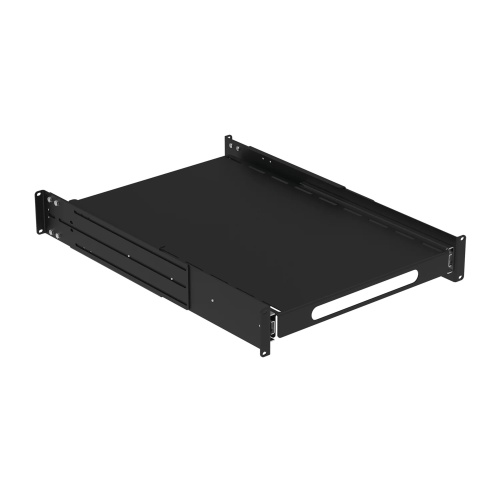

nVent Hoffman P19SHP810B Rack-Mount Sliding Shelf
Normally In Stock
Code: 7347
nVent Hoffman P19SHP810B Rack-Mount Sliding Shelf 16.2" wide x 41.3" deep. Black with 150 lb load rating.
Condition: New
Usually ships Same Day or Next Day$899.81
Sale Price
$749.84
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Rack-Mount Sliding Shelf for easy access to shelf-mounted devices. Load rating is 150 lbs. with four rack angle mountings and 75 lbs. with front rack angle mounting when mounted directly to a frame. 16-gauge steel with 12-gauge steel supports. Black polyester powder paint fiish. Shelf mounts to the front surface of front and back rack angles.
Specifications
Shelf Type
Pull-Out Shelf
Shelf Rack Units
2 Rack Units
Component
Shelf
Sub Component
Rack-Mount Sliding Shelf
(Shelf/Drawer Component) Finish
Gray
(Shelf/Drawer Component) Composition
Steel
(Shelf/Drawer Component) Finish
Black
(Shelf/Drawer Component) Mounting
Rack Mount
(Shelf/Drawer Component) For Rack Size
19" Rack
(Shelf/Drawer Component) Movement
Sliding
(Shelf/Drawer Component) Rack Mount Type
Rack Angles
(Shelf/Drawer Component) Load Rating
75 Lbs. - 150 Lbs.
Line
PROLINE
Manufacturer
Hoffman
Features
Load rating is 150 lb. (68 kg) with four rack angles mounted directly to frame verticals, load rating reduced to 75 lb. (34 kg) with front rack angle mounting only
Rack accessories that are shorter than the enclosure depth can be mounted to rack angles or frame accessory brackets attached to grid straps. Order these items separately
Mounts to the front surface of front and back rack angles
Shelf is 16-gauge steel with 12-gauge steel supports
Downloads
Hoffman P19SHP810B 2D DXF CAD.zipHoffman P19SHP810B 3D STEP CAD.zipHoffman P19SHP810B CAD Drawing.zipHoffman P19SHP810B Declaration of Compliance.pdfHoffman P19SHP810B Dimension Drawing.gifHoffman P19SHP810B EU Certification.pdfHoffman P19SHP810B Instruction Manual.pdfHoffman P19SHP810B Spec Sheet.pdf
