Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
Phoenix Contact 2866679 Power supply QUINT-PS/1AC/48DC/ 5
Normally In Stock
Code: 727
Phoenix Contact QUINT-PS/1AC/48DC/5. 48 VDC output 5 Amp Premium Power Supply(Class 1 Div 2) with input voltage 85-240 Vac or 90-350 Vdc. Temperature range of -13 F to 158 F. Din rail mount Screw Connection.
Condition: New
Usually ships within 7-14 days. Call for ship time.$839.69
Sale Price
$699.74
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

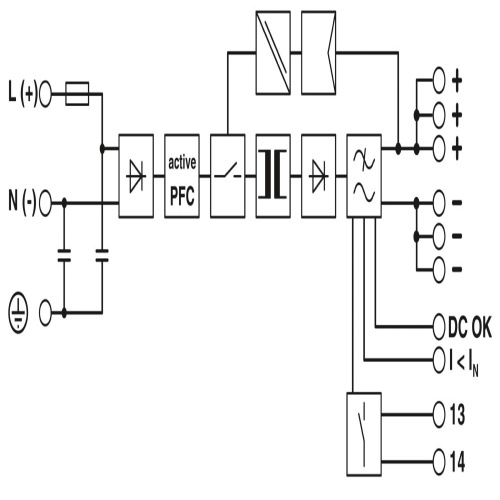

Phoenix Contact 2866679 The Quint Power is a primary-switched power supply unit with a pluggable screw connection and DIN rail mounting option, featuring SFB Technology for selective fuse breaking. It accepts a single-phase input and outputs a stable DC voltage of 48V at a maximum current of 5A.
Specifications
Power Supply Type
Switching
Power Supply Mounting
Din Rail Mount
Power Supply Number of Outputs
Single Output
Power Supply Voltage Output
48 VDC
Power Supply Watts
240 Watt
Power Supply Housing
Enclosed
Power Supply Amperage Output
5 Amp
Component
Power Supply
Manufacturer
Phoenix Contact
Line
QUINT
Power Supply Amperage Output Range
0-5 Amp
Power Supply Voltage Input Range
85 VAC - 264 VAC
Power Supply Voltage Input Range
90 VDC - 350 VDC
Features
Quick tripping of standard circuit breakers
Preventive function monitoring
Reliable starting of difficult loads
