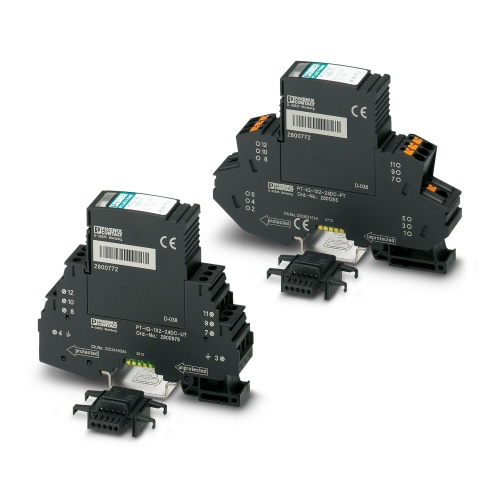

Phoenix Contact 2801255 Surge protection device PT-IQ-1X2-24DC-PT
Normally In Stock
Code: 71716
PT-IQ-1X2-24DC-PT Phoenix 2801255 Surge protection for measurement and control technology 24 VDC Push-in connection,DIN rail NS35 Surge protection device Surge Protection
Condition: New
Usually ships within 7-14 days. Call for ship time.$278.20
Sale Price
$231.83
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

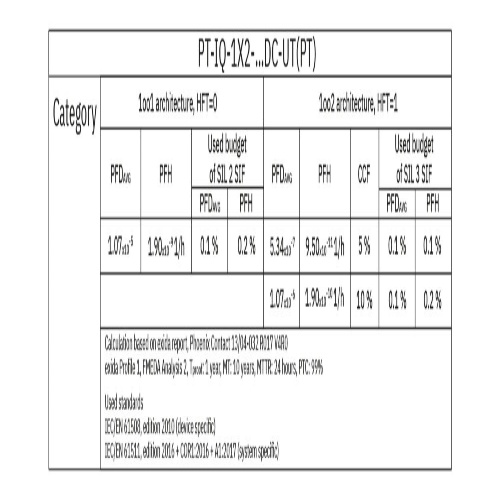

Phoenix Contact 2801255 A surge protection system consisting of a protective plug and a module featuring a multi-stage status indicator is designed for use in 2-wire floating signal circuits that are compatible with the Hart communication protocol. This equipment can be utilized in safety-critical applications requiring a level of reliability ascertained by SIL (Safety Integrity Level) 3.
Specifications
Max Discharge Capacity
80 A
Fault Warning
Optical
Arrester Class according to IEC
PV II
Arrester Class according to IEC
PV T2
Manufacturer
Phoenix Contact
Connection Method
Screw Connection
Surge Protector Line Voltage
24 Volt
Surge Protector Type
PV Arrester
Nominal Discharge Current
15 Ka
Component
Surge Protection Device
Features
Maximum ease of maintenance, thanks to the 2-piece design
Integration of the status message into the system controller via group remote signaling
Install quickly and error-free with DIN rail connectors
Predictive monitoring with 3-stage LED display
Maximum protection for MCR applications with high discharge capacity
Downloads
Phoenix 2801255 CAD data International.dxfPhoenix 2801255 CAD data International.pdfPhoenix 2801255 CAD data International.stpPhoenix 2801255 Flyer English-2.pdfPhoenix 2801255 Flyer English.pdfPhoenix 2801255 Manufacturers declaration English.pdfPhoenix 2801255 Manufacturers declaration International.pdfPhoenix 2801255 Package Slip International.pdfPhoenix 2801255 Product Information English.pdfPhoenix 2801255 Software International.zipPhoenix 2801255 Surge Protection English.pdfPhoenix 2801255 Tender Text English.zip
