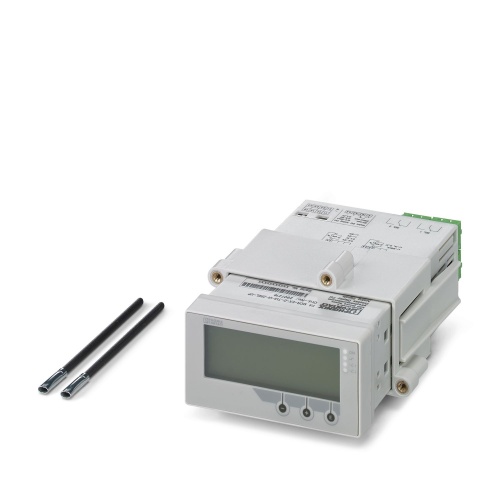

Phoenix Contact 2907064 Digital display FA MCR-D-TUI-UI-2REL-UP
Normally In Stock
Code: 71606
FA MCR-D-TUI-UI-2REL-UP Phoenix 2907064 Digital displays Pluggable spring-cage terminal blocks Monitoring *NON-CANCELLABLE, NON-RETURNABLE*
Condition: New
Usually ships Same Day or Next Day*NON-CANCELLABLE, NON-RETURNABLE*
$785.87
Sale Price
$654.89
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 2907064 A multifunctional process indicator is integrated into a control panel component, providing a central hub for monitoring and displaying various analog measurement data such as currents, voltages, thermocouples (TCs) and resistance temperature detectors (RTDs). It features two relay change-over contact outputs and one analog output to enable flexibility in the connection and management of different types of sensors and devices.
Specifications
Monitoring Input Signal
0 Ma - 20 Ma +10 %
Monitoring Input Signal
4 Ma - 20 Ma +10 %
Monitoring Connection Method
Push-In Connection
Monitoring Supply Voltage
24 V AC-DC - 230 V AC-DC
Manufacturer
Phoenix Contact
Component
Digital Displays
Features
Easy configuration of process displays, either via front keypad or using FDT/DTM software
Everything at a glance on the display: values, bar graphs, or measuring point designations, plus color change in the event of an error
Easy installation with standardized housing dimensions and plug-in connection terminal blocks
Digitally transfer and display process data with HART®-compatible display versions
International use with UL and CSA approvals
Also for intrinsically safe circuits in the Ex area: versions with ATEX, CSA, and FM approval
Downloads
Phoenix 2907064 CAD data International.dxfPhoenix 2907064 CAD data International.pdfPhoenix 2907064 CAD data International.stpPhoenix 2907064 Data Sheet English.pdfPhoenix 2907064 Manufacturers declaration International.pdfPhoenix 2907064 Package Slip International.pdfPhoenix 2907064 Product Information English.pdfPhoenix 2907064 Software International.zipPhoenix 2907064 Tender Text English.zip
