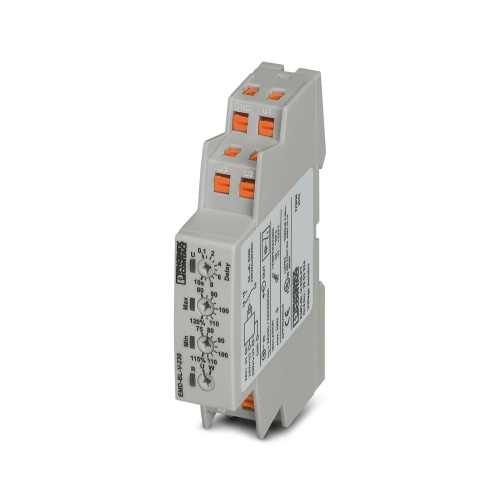

Phoenix Contact 2903524 Monitoring relay EMD-BL-V-230-PT
Normally In Stock
Code: 69088
Phoenix 2903524 Voltage monitoring relay 1floatingPDT 0 VDC - 24 VDC (connection terminal blocks: U1 and GND) Push-in connection Relays
Condition: New
Usually ships within 7-14 days. Call for ship time.$165.40
Sale Price
$137.83
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 2903524 A one-phase voltage monitoring relay is available in two configuration options, either 24V AC/DC or 230V AC, and can detect undervoltages or overvoltages. It features a single changeover contact that allows for easy switching, and can be connected using a push-in connection.
Specifications
Relay Throws
Double Throw
Relay Mounting
Din Rail
Relay Connection Type
Push-In Connection
Floating (Isolated Dry Contacts)
Floating Isolated Contacts
Relay Poles
Single Pole
Component
Voltage Monitoring Relay
Relay Timing Range
0.1 S - 10 S
Manufacturer
Phoenix Contact
Relay Load Voltage AC Rating
250 Volt
Coil Voltage Rating
0-30 Volt
Features
Increase system availability and reduce downtime
Easy configuration with user-friendly user interface
Targeted control or shutdown when a limit value is exceeded or not met
Downloads
Phoenix 2903524 CAD data International.dxfPhoenix 2903524 CAD data International.pdfPhoenix 2903524 CAD data International.stpPhoenix 2903524 Data Sheet English.pdfPhoenix 2903524 Manufacturers declaration International.pdfPhoenix 2903524 Package Slip International.pdfPhoenix 2903524 Product Information English.pdfPhoenix 2903524 Tender Text English.zipPhoenix 2903524 Various English.pdf
