Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

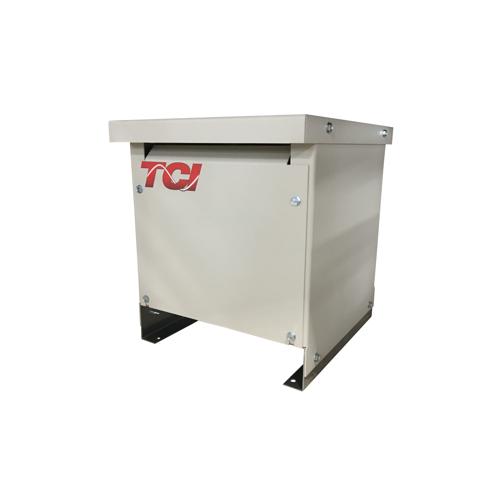

TCI KDRD26LE3R (KDR) Reactor 208 Volt,240 Volt 3 Phase 62 Amp 20 HP
Normally In Stock
Code: 67384
TCI KDRD26LE3R (KDR) Output Line Reactor 208 Volt,240 Volt, 0.03 Impedance 62 Amp 20 HP - 11.5" x 10" x 12" (HxWxD)
Condition: New
Usually Ships within 2-4 weeks*NON-CANCELLABLE, NON-RETURNABLE*
$1046.84
Sale Price
$872.37
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
KDR line/Load reactors Output (1.5%), Low-Z (3% impedance), High -Z (5% impedance) UL listed available in Open, Type 1, Type 3R Lug kits available DIN Rail options available.
Specifications
VFD Filter Includes Heater
No Heater
VFD Filter Horsepower
20 HP
VFD Filter Voltage
240 Volt
VFD Filter Voltage
208 Volt
VFD Filter Impedance
3%
VFD Filter Line
(KDR) Reactor
VFD Filter Protected Side
Line Side (In)
Manufacturer
TCI
VFD Filter Voltage Phase
Three Phase
VFD Filter Motor Amps
59.4 Motor Amp
VFD Filter Watts Loss
94 Watts
VFD Filter Enclosure
UL Type 3R
Features
Impedance Protection: Low “Z” and High “Z”
System Voltage: 208/240 VAC, 480 VAC, 575/600 VAC, 690 VAC
Ambient Temperature: 50° C (122° F) – Open
40° C (104° F) – Enclosed
Altitude (Maximum): 2,000 meters (6,000 feet) – Derating necessary above 2,000 meters
Fundamental Frequency: 50/60 Hz
Short Term Overload Rating: Tolerate 200% rated I for a maximum of 3 minutes
Agency Approvals: cULus Listed, CE Marked
Inductance Characteristics: Minimum 95% L at 110% Load
Minimum 80% L at 150% Load
Input and Output: Available for either the line or load side of a VFD
