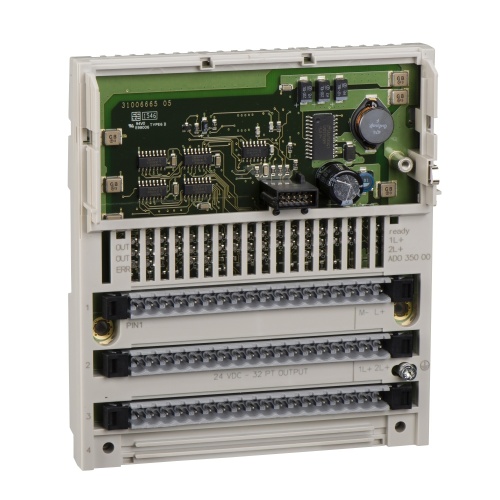

Schneider Electric 170ADO54050 - discrete output module Modicon Momentum - 16 O solid state
Normally In Stock
Code: 659014
Schneider Electric 170ADO54050 - discrete output module Modicon Momentum - 16 O solid state
Condition: New
Usually ships Same Day or Next Day$1919.44
Sale Price
$1599.53
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Schneider Electric 170ADO54050 - discrete output module Modicon Momentum - 16 O solid state
Specifications
Manufacturer
Schneider Electric
Component
Discrete Output Module
Features
This output module is part of the Modicon Momentum range, an offer of controller and IP20 monoblock I/Os for distributed control architecture
This discrete output base AC module offers 2 groups of 8 outputs, 16 discrete outputs with triac type
It offers discrete output voltage of 120V AC
There is an isolation between channels and bus at 1780V AC
It features 16 LEDs for channel status signaling
Its dimensions are 125mm (width) x 47.5mm (depth) x 141.5mm (height)
It weighs 0.284kg
The main application of this module is infrastructures and energy, material handling, simple machine control
This product is certified by CE, FM Class 1 Division 2, CSA and UL
It is suitable for wall mount
Momentum is a flexible, modular family of components that easily snaps together and can be configured for a wide range of distributed I/O and control applications
System with 4 fundamental components that easily snap together in various combinations to form versatile control systems or sub-systems.
