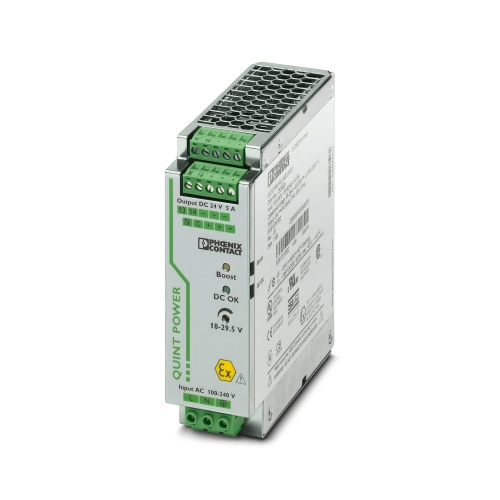

Phoenix Contact 2320908 Power supply, with protective coating QUINT-PS/1AC/24DC/ 5/CO
Normally In Stock
Code: 654
QUINT-PS/1AC/24DC/ 5/CO Phoenix Contact QUINT-PS/1AC/24DC/5/CO. 24 VDC output 5 Amp Premium Power Supply(Class 1 Div 2) with input voltage 85-240 Vac or 90-350 Vdc. Din rail mount Screw Connection. Temperature range of -13 F to 158 F.
Condition: New
Usually ships within 7-14 days. Call for ship time.$680.87
Sale Price
$567.39
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 2320908 The QUINT POWER power supply unit is a primary-switched power supply that features screw connections and can be mounted on a DIN rail. It utilizes the SFB Technology for selective fuse breaking and provides a stable output of 24V DC at a current rating of 5A.
Specifications
Power Supply Type
Switching
Power Supply Mounting
Din Rail Mount
Power Supply Number of Outputs
Single Output
Power Supply Watts
120 Watt
Power Supply Voltage Output
24 VDC
Power Supply Housing
Enclosed
Power Supply Amperage Output
5 Amp
Component
Power Supply
Manufacturer
Phoenix Contact
Line
QUINT
Power Supply Amperage Output Range
0-5 Amp
Power Supply Voltage Input Range
85 VAC - 264 VAC
Features
Preventive function monitoring
Reliable starting of difficult loads with the static POWER BOOST power reserve with up to 1.5 times the nominal current permanently
Fast tripping of standard circuit breakers with dynamic power reserve SFB (selective fuse breaking) technology with up to 6 times the nominal current for 12 ms
For superior system availability
Optimum protection with dip coating for 100 % humidity
Downloads
Phoenix 2320908 CAD data International.dxfPhoenix 2320908 CAD data International.pdfPhoenix 2320908 CAD data International.stpPhoenix 2320908 CAD Drawing.dxfPhoenix 2320908 Data Sheet English.pdfPhoenix 2320908 Manufacturers declaration English.pdfPhoenix 2320908 Manufacturers declaration International-2.pdfPhoenix 2320908 Manufacturers declaration International-3.pdfPhoenix 2320908 Manufacturers declaration International-4.pdfPhoenix 2320908 Manufacturers declaration International.pdfPhoenix 2320908 Package Slip International.pdfPhoenix 2320908 Spec Sheet.pdfPhoenix 2320908 Tender Text English.zipPhoenix 2320908 User Manual.pdfPhoenix 2320908 Various English.pdfPhoenix 2320908 Various English.wmv
