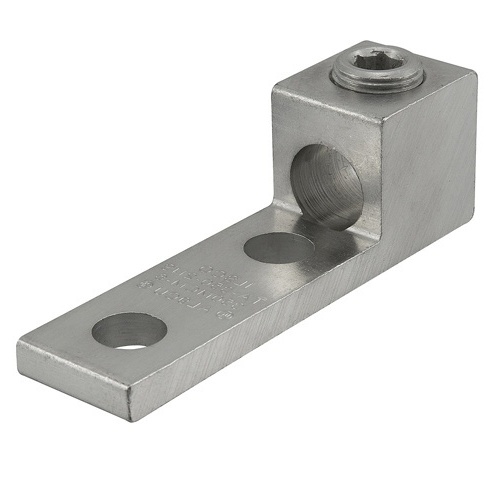

Ilsco TA-350-2NS Mechanical Lug - Aluminum, 350-6 AWG, Stranded, 35 kV
Normally In Stock
Code: 589539
Ilsco TA-350-2NS - Aluminum Mechanical Lug, Conductor Range 350-6, 1 Port, 2 Holes, 1/2in Bolt Size, 1-3/4in Hole Spacing, Tin Plated, UL, CSA
Condition: New
CALL FOR LEAD TIME$30.80
Sale Price
$23.69
NO MOQ/PACK QUANTITY. QTY 1 = QTY 1
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Ilsco TA-350-2NS - Aluminum Mechanical Lug with 1 port, 2 holes, and 1/2in bolt size. Conductor range 350-6, dual-rated for 35kV. UL/CSA listed, tin-plated aluminum with temperature rating of 90°C. Suitable for stranded aluminum conductors. Mounting holes spaced at 1-3/4in. Ideal for mechanical connections in electrical applications. Drive size 3/8.
Specifications
Color
Silver
Manufacturer
Ilsco
Material
Aluminum
Terminal Stud Size Opening
1/2"
Maximum Operating Temperature (Fahrenheit)
194 °F
Maximum Operating Temperature (Celsius)
90 °C
Connector Finish
Tin
Voltage Rating
35 Kv
Number of Connectors
1
Component
Mechanical Lug
Terminal for Wire Gauge
350-6 AWG
Features
Manufactured from high strength 6061-T6 aluminum alloy
Electro-tin plated
Chamfered wire entry
Suitable for use in circuits rated 35KV or less, proper high voltage spacing and insulation techniques must be used
Rated to 90˚ C
