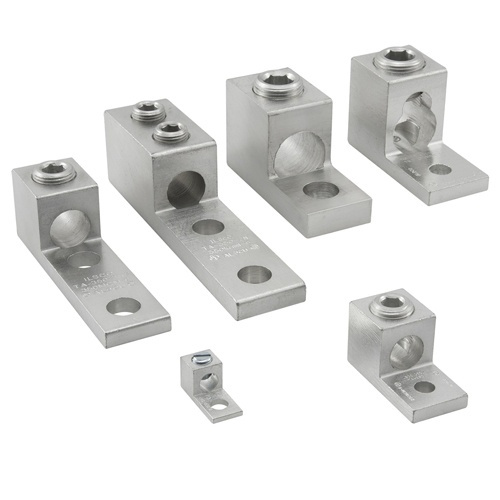

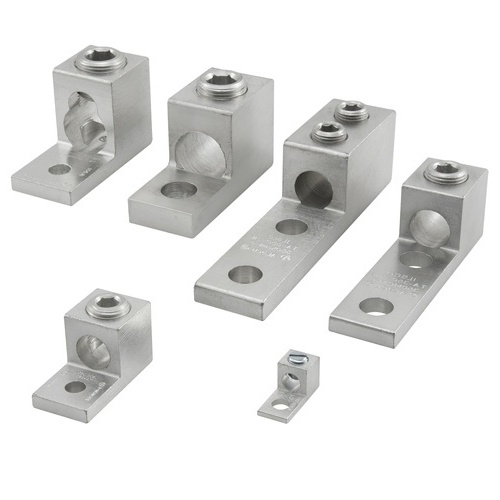

Ilsco TA-300 Mechanical Lug - Aluminum, 300-6 AWG, Stranded, 35 kV, 1/4"
Normally In Stock
Code: 588872
Ilsco TA-300 - Aluminum Mechanical Lug, Conductor Range 300-6, 1 Port, 1 Hole, 1/4in Bolt Size, Tin Plated, UL, CSA
Condition: New
CALL FOR LEAD TIME$12.60
Sale Price
$9.69
NO MOQ/PACK QUANTITY. QTY 1 = QTY 1
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Ilsco TA-300 - The Aluminum Mechanical Lug is a versatile connector, featuring a conductor range of 300-6 kcmil, 1 port, and 1 hole with a 1/4in bolt size. It is UL and CSA approved, with a 35 kV voltage rating and 90°C temperature rating. Dual-rated for aluminum and copper conductors. Tin-plated for durability.
Specifications
Color
Silver
Terminal Stud Size Opening
1/4"
Manufacturer
Ilsco
Material
Aluminum
Maximum Operating Temperature (Fahrenheit)
194 °F
Maximum Operating Temperature (Celsius)
90 °C
Connector Finish
Tin
Voltage Rating
35 Kv
Number of Connectors
1
Component
Mechanical Lug
Terminal for Wire Gauge
300-6 AWG
Features
Manufactured from high strength 6061-T6 aluminum alloy
Electro-tin plated
Chamfered wire entry
Suitable for use in circuits rated 35KV or less, proper high voltage spacing and insulation techniques must be used
Rated to 90˚ C
