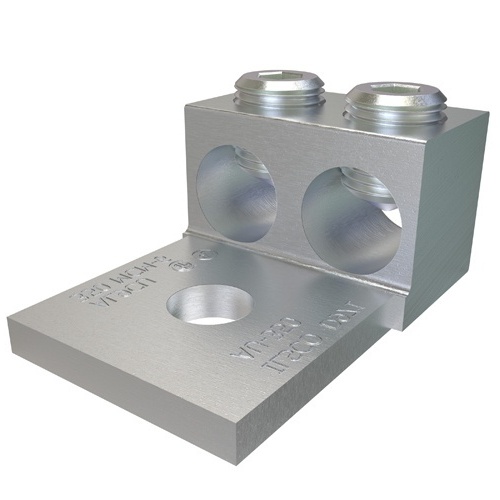

Ilsco AU-350 Mechanical Lug - Aluminum, 350-6 AWG, Stranded, 35 kV
Normally In Stock
Code: 589523
Ilsco AU-350 - Aluminum Mechanical Lug, Conductor Range 350-6, 2 Ports, 1 Hole, 1/2in Bolt Size, Tin Plated, UL, CSA
Condition: New
CALL FOR LEAD TIME$34.58
Sale Price
$26.60
NO MOQ/PACK QUANTITY. QTY 1 = QTY 1
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Ilsco AU-350 - Aluminum Mechanical Lug with 2 ports, 1 hole, and 1/2in bolt size. Tin plated for durability. UL and CSA listed, suitable for 350-6 conductor range. Temperature rating of 90°C and voltage rating of 35 kV. Dual rated for aluminum and copper conductors. Mounting hole diameter of 14.0462mm. Drive size 5/16.
Specifications
Color
Silver
Manufacturer
Ilsco
Material
Aluminum
Terminal Stud Size Opening
1/2"
Maximum Operating Temperature (Fahrenheit)
194 °F
Maximum Operating Temperature (Celsius)
90 °C
Connector Finish
Tin
Voltage Rating
35 Kv
Number of Connectors
2
Component
Mechanical Lug
Terminal for Wire Gauge
350-6 AWG
Features
Manufactured from high strength 6061-T6 aluminum alloy
Electro-tin plated
Chamfered wire entry
Suitable for use in circuits rated 35KV or less, proper high voltage spacing and insulation techniques must be used
Rated to 90˚ C
