Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

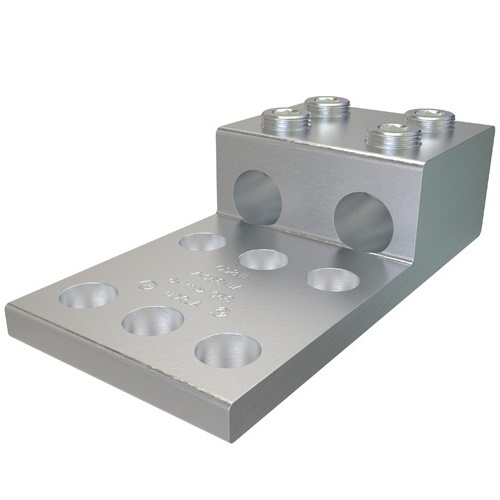

Ilsco AU-350-N Mechanical Lug - Aluminum, 350-6 AWG, Stranded, 35 kV
Normally In Stock
Code: 588932
Ilsco AU-350-N - Aluminum Mechanical Lug, Conductor Range 350-6, 2 Ports, 6 Holes, 1/2in Bolt Size, 1-3/4in Hole Spacing, Tin Plated, UL, CSA
Condition: New
CALL FOR LEAD TIME$57.77
Sale Price
$44.44
NO MOQ/PACK QUANTITY. QTY 1 = QTY 1
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Ilsco AU-350-N - Aluminum Mechanical Lug, Conductor Range 350-6, 2 Ports, 6 Holes, 1/2in Bolt Size, Tin Plated, UL/CSA/NEMA S-588-3, 90°C, 35kV, Stranded Copper/Aluminum, Internal Hex Drive, Dual Rated, UL Listed, CSA File LR-29601, Mounting Hole Spacing 1.75in, Wire Binding Hardware Aluminum with Tin Finish, Torque 275 in-lbs.
Specifications
Color
Silver
Manufacturer
Ilsco
Material
Aluminum
Terminal Stud Size Opening
1/2"
Maximum Operating Temperature (Fahrenheit)
194 °F
Maximum Operating Temperature (Celsius)
90 °C
Connector Finish
Tin
Voltage Rating
35 Kv
Number of Connectors
2
Component
Mechanical Lug
Terminal for Wire Gauge
350-6 AWG
Features
Manufactured from high strength 6061-T6 aluminum alloy
Electro-tin plated
Chamfered wire entry
Suitable for use in circuits rated 35KV or less, proper high voltage spacing and insulation techniques must be used
Rated to 90˚ C
