Code: 589383

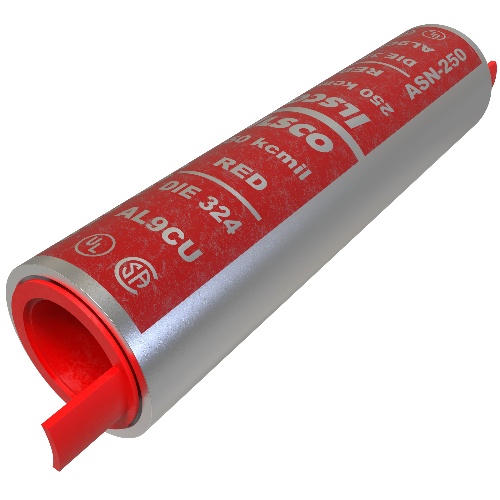

Ilsco ASN-250 Compression Splices - Aluminum, 250 MCM, Stranded, 35 kV, Silver
Normally In Stock
Ilsco ASN-250 - Surecrimp Aluminum Compression Sleeve, Conductor Size 250, Tin Plated, UL, CSA
Condition: New
CALL FOR LEAD TIME$44.29
Sale Price
$34.07
NO MOQ/PACK QUANTITY. QTY 1 = QTY 1
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Ilsco ASN-250 - Surecrimp Aluminum Compression Sleeve, Conductor Size 250 kcmil, tin plated for durability. UL, CSA, NEMA Code S-588-1. Dual rated for copper and aluminum conductors. Temperature rating of 90°C, voltage rating of 35 kV. DE-OX® material included. Suitable for single conductor applications. Compression connection for secure and reliable performance.
Specifications
Color
Silver
Manufacturer
Ilsco
Material
Aluminum
Terminal for Wire Gauge
250 MCM
Maximum Operating Temperature (Fahrenheit)
194 °F
Maximum Operating Temperature (Celsius)
90 °C
Connector Finish
Tin
Voltage Rating
35 Kv
Number of Connectors
1
Component
Compression Splices
Features
Manufactured from high strength aluminum alloy
Electro-Tin plated
Chamfered entry
Color coded end cap
Ink marked
Pre-filled with DE-OX® oxide inhibiting compound
Range taking
Suitable for use in circuits rated 35KV or less, proper high voltage spacing and insulation techniques must be used
Dual rated AL9CU to 90˚ C
