Code: 588314

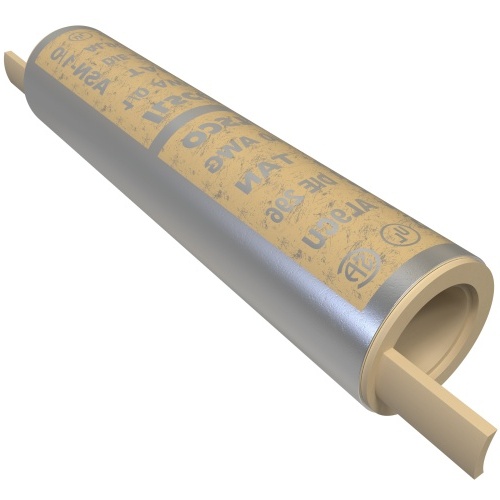

Ilsco ASN-1/0 Compression Splices - Aluminum, 1/0 AWG, Stranded, 35 kV, Silver
Normally In Stock
Ilsco ASN-1/0 - Surecrimp Aluminum Compression Sleeve, Conductor Size 1/0, Tin Plated, UL, CSA
Condition: New
CALL FOR LEAD TIME$32.53
Sale Price
$25.02
NO MOQ/PACK QUANTITY. QTY 1 = QTY 1
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Ilsco ASN-1/0 - Surecrimp Aluminum Compression Sleeve for 1/0 conductor size, with tin plating. UL, CSA, NEMA Code S-588-1 listed. Dual rated for copper and aluminum stranded conductors. Rated for 35 kV and 90°C. Compression connection, DE-OX® material included. Conductor range 1/0 Str - 1 Str. Color code: Tan. 180° connecting angle.
Specifications
Color
Silver
Manufacturer
Ilsco
Material
Aluminum
Terminal for Wire Gauge
1/0 AWG
Maximum Operating Temperature (Fahrenheit)
194 °F
Maximum Operating Temperature (Celsius)
90 °C
Connector Finish
Tin
Voltage Rating
35 Kv
Number of Connectors
1
Component
Compression Splices
Features
Manufactured from high strength aluminum alloy
Electro-Tin plated
Chamfered entry
Color coded end cap
Ink marked
Pre-filled with DE-OX® oxide inhibiting compound
Range taking
Suitable for use in circuits rated 35KV or less, proper high voltage spacing and insulation techniques must be used
Dual rated AL9CU to 90˚ C
