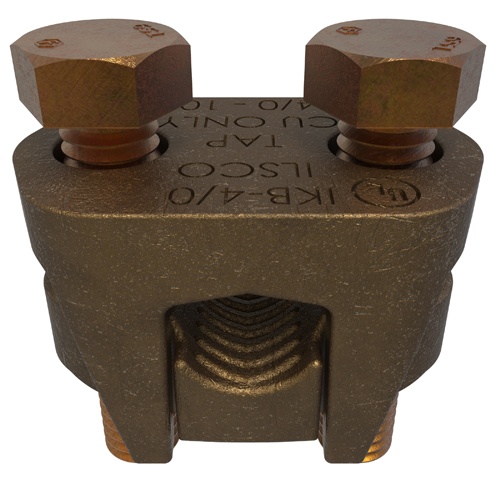

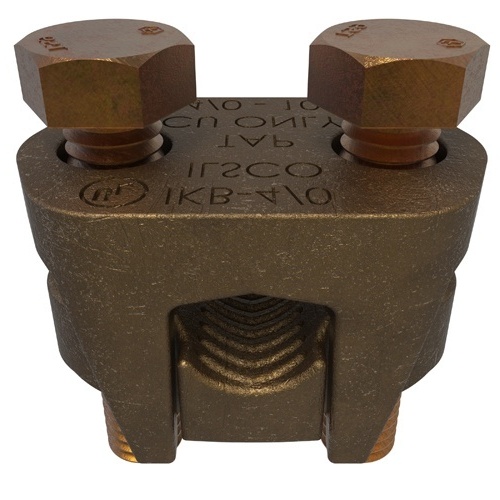

Ilsco IKB-4/0 Split Bolt - Copper, 4/0-1/0 AWG, Stranded, 35 kV, Copper
Normally In Stock
Code: 588706
Ilsco IKB-4/0 - Copper Two-Bolt Split Bolt, Main Conductor Range 4/0-1/0, Tap Range 4/0-10, UL
Condition: New
CALL FOR LEAD TIME$83.90
Sale Price
$64.54
NO MOQ/PACK QUANTITY. QTY 1 = QTY 1
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Ilsco IKB-4/0 - Copper Two-Bolt Split Bolt for electrical connections. Main conductor range 4/0-1/0, tap range 4/0-10. UL listed with NEMA Code S-588-4. Copper material, mechanical connection. Voltage rating of 35 kV, temperature rating of 90°C. Suitable for 2 conductors, with 1 pole. RUS listed, UL 486A/B Listed.
Specifications
Manufacturer
Ilsco
Material
Copper
Component
Split Bolt
Maximum Operating Temperature (Fahrenheit)
194 °F
Maximum Operating Temperature (Celsius)
90 °C
Color
Copper
Voltage Rating
35 Kv
Number of Connectors
2
Terminal for Wire Gauge
4/0-1/0 AWG
Features
Manufactured from high strength copper alloy
Two bolt design
Longer peened bolt
Suitable for use in circuits rated 35KV or less, proper high voltage spacing and insulation techniques must be used
For copper conductor only
Rated to 90˚ C
