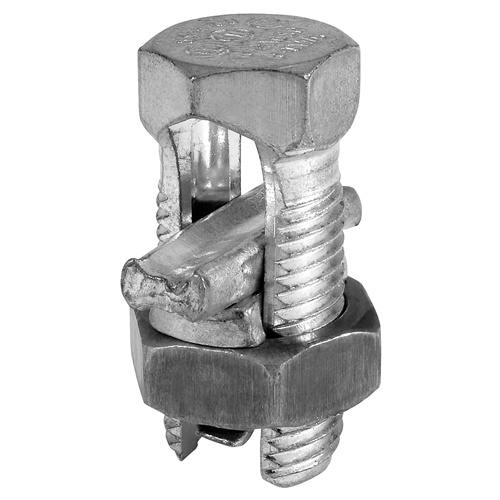

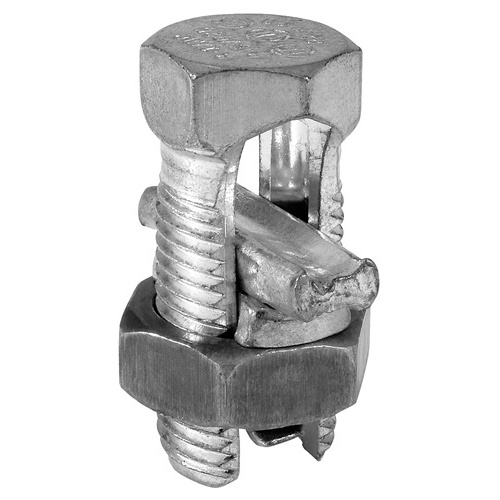

Ilsco SK-4 Split Bolt - Copper, 6-10 AWG, Stranded, 35 kV, Silver
Normally In Stock
Code: 588663
Ilsco SK-4 - Copper Split Bolt, Dual Rated, Conductor Range for Equal Main & Tap 6-10, Tin Plated, UL, CSA
Condition: New
CALL FOR LEAD TIME$10.53
Sale Price
$8.10
NO MOQ/PACK QUANTITY. QTY 1 = QTY 1
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Ilsco SK-4 - Ilsco's Copper Split Bolt is a Dual Rated connector with a conductor range of 6-10 for equal main and tap. Tin plated for durability, it has a 35 kV voltage rating and is UL/CSA listed. Suitable for 1 conductor, it features a drive size of 9/16 and torque of 165 in-lbs.
Specifications
Color
Silver
Manufacturer
Ilsco
Material
Copper
Component
Split Bolt
Maximum Operating Temperature (Fahrenheit)
194 °F
Maximum Operating Temperature (Celsius)
90 °C
Connector Finish
Tin
Voltage Rating
35 Kv
Number of Connectors
1
Terminal for Wire Gauge
6-10 AWG
Features
Manufactured from high strength copper alloy
Electro-tin plated bolt, nut, spacer and pressure bar
Precision tooled threads
SK-10, SK-8, SK3, SK-2 SK-1/0, SK-2/0 are RUS Accepted
For use with copper conductor types: Solid, Compact, Compressed, Concentric
Suitable for use in circuits rated 35KV or less, proper high voltage spacing and insulation techniques must be used
Rated to 90˚ C
