Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

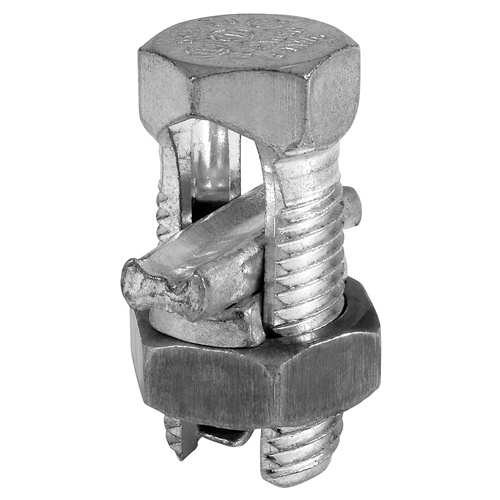

Ilsco SK-750 Split Bolt - Copper, 750-3/0 AWG, Solid, 35 kV, Silver
Normally In Stock
Code: 587637
Ilsco SK-750 - Copper Split Bolt, Conductor Range for Equal Main & Tap 750-250, Tin Plated, UL, CSA
Condition: New
CALL FOR LEAD TIME$167.48
Sale Price
$128.83
NO MOQ/PACK QUANTITY. QTY 1 = QTY 1
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Ilsco SK-750 - Ilsco Copper Split Bolt with Tin Plated finish is UL and CSA listed for 35kV voltage rating. Suitable for 750 kcmil - 3/0 Str Cu conductors, it features a drive size of 1-15/16" and wire binding torque of 1000 in-lbs. Ideal for mechanical connections in various applications.
Specifications
Color
Silver
Manufacturer
Ilsco
Material
Copper
Component
Split Bolt
Maximum Operating Temperature (Fahrenheit)
194 °F
Maximum Operating Temperature (Celsius)
90 °C
Connector Finish
Tin
Voltage Rating
35 Kv
Number of Connectors
1
Terminal for Wire Gauge
750-3/0 AWG
Features
Manufactured from high strength copper alloy
Electro-tin plated bolt, nut, spacer and pressure bar
Precision tooled threads
SK-10, SK-8, SK3, SK-2 SK-1/0, SK-2/0 are RUS Accepted
For use with copper conductor types: Solid, Compact, Compressed, Concentric
Suitable for use in circuits rated 35KV or less, proper high voltage spacing and insulation techniques must be used
Rated to 90˚ C
