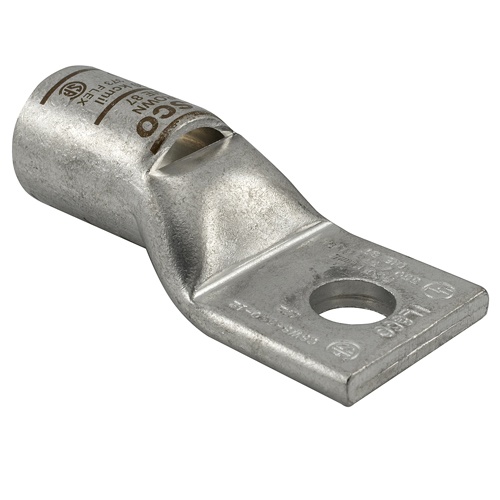

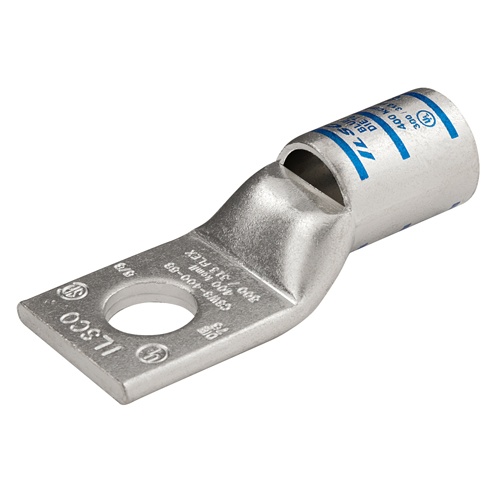

Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
Ilsco CSWS-400-12 Compression Lug - Copper, 400 MCM, Stranded, 35 kV
Normally In Stock
Code: 586228
Ilsco CSWS-400-12 - Surecrimp Copper Compression Lug, Conductor Size 400, 1 Hole, 1/2in Bolt Size, Standard Barrel, Sight Window, Tin Plated, UL, CSA
Condition: New
CALL FOR LEAD TIME$25.53
Sale Price
$19.64
NO MOQ/PACK QUANTITY. QTY 1 = QTY 1
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Ilsco CSWS-400-12 - Surecrimp Copper Compression Lug is a durable connector for 400 kcmil stranded copper conductors. UL and CSA listed with 1/2in bolt size and temperature rating of 90°C. Features sight window and mounting hole for direct burial applications. Secure compression connection for 35 kV voltage rating. Compatible with 1 hole mounting.
Specifications
Component
Compression Lug
Manufacturer
Ilsco
Material
Copper
Connector Finish
Tin
Number of Mounting Holes
2
Bolt Size
1/2"
Conductor Type
Flex
Wire Gauge
400 MCM
Features
Manufactured from high strength seamless copper tubing
Electro-Tin plated
Chamfered entry
Color coded
Suitable for use in circuits rated 35KV or less, proper high voltage spacing and insulation techniques must be used
UL Listed and CSA Certified with ILSCO and major competitor’s compression tools
UL467 Listed 500 kcmil - 10 AWG , #10 - #2 SOL
For direct bury 500 kcmil - 10 grounding and bonding
Rated to 90˚ C
