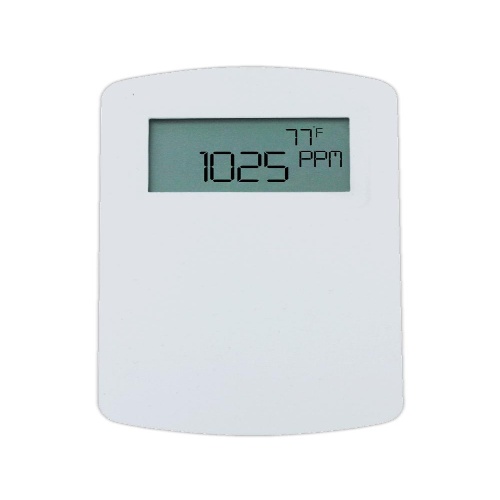

Dwyer CDTC-2N000 Communicating Carbon Dioxide Sensor
Normally In Stock
Code: 571746
Dwyer CDTC-2N000 - Communicating carbon dioxide transmitter with temperature output, 2000 PPM range and North American housing
Condition: New
Usually ships Same Day or Next Day$386.99
Sale Price
$322.49
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Dwyer CDTC-2N000 is a communicating carbon dioxide sensor with a temperature range of 32 to 122°F (0 to 50°C). It has an accuracy of ±40 PPM ±3% of reading for carbon dioxide and ±1°C @ 25°C for temperature. The sensor has a power requirement of 10-42 VDC or 10-30 VAC and a response time of <2 minutes. It has a range of 0 to 2000 or 5000 PPM CO2, depending on the model, and 32 to 122°F (0 to 50°C) for temperature. The humidity range is 10 to 95% RH (non-condensing). The sensor uses NDIR (non-dispersive infrared) technology with a 15-year light source. It has a 2-wire RS-485, Modbus® RTU, or BACnet MS/TP communication protocol.
Specifications
(Instrument-Sensor) Measurement Accuracy
3%
(Instrument-Sensor) Type
Carbon Dioxide
(Instrument-Sensor) Supply Voltage
10-42 VDC
(Instrument-Sensor) Temperature Range
32 - 122°F/0 - 50°C
(Instrument-Sensor) Supply Voltage
10-30 VAC
Manufacturer
Dwyer Instruments
Component
Communicating Carbon Dioxide Sensor
Features
The Series CDTA and CDTC Communicating Carbon Dioxide Detector combines the function of several room sensors into a single, compact housing
Both the Series CDTA and the CDTC’s parameters include carbon dioxide, temperature, and temperature set point with override while the CDTA also includes a humidity sensor
By having field selectable Modbus® and BACnet Communications, only four wires are needed for power and the communication signal
The communicating detectors can be daisy chained together to further reduce installation cost
In order to reduce the set up time, the RS-485 MAC address is set up using on-board DIP switches
A second set of DIP switches are used to select whether output is Modbus® RTU or BACnet MS/TP communication protocols and to limit access to the set up menu
