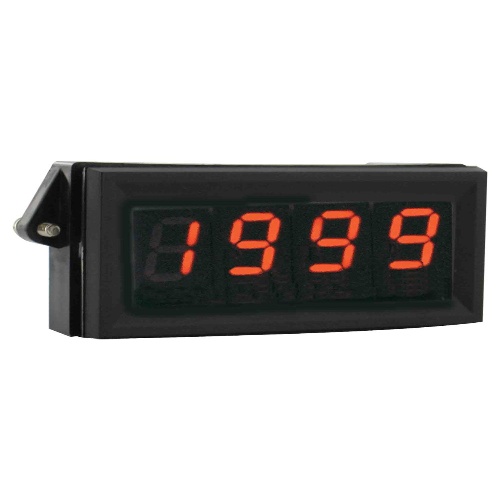

Dwyer DPMA-402 LCD Digital Process Meter
Normally In Stock
Code: 571620
Dwyer DPMA-402 - LCD Digital panel meter, loop powered 4 to 20 mA, red segments.
Condition: New
Usually ships Same Day or Next Day$237.49
Sale Price
$197.91
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Dwyer DPMA-402 is an LCD digital process meter with a temperature range of 32 to 122°F (0 to 50°C). It has an accuracy of ±(0.05% FS + 1 count) and adjustable zero and span adjustments. The meter can be powered by a control loop or 12VDC/24VDC. It is designed for snap-in panel mount or clamp mounting with screw terminals for connection. The input options include 4-20mA, 0-200mVDC, 0-5VDC, or 0-10VDC. The meter displays in 3-1/2 digits, has user-selectable decimal points, and converts at a rate of 3 per second. It features automatic polarity and a backlight power supply of 24VDC.
Specifications
Component
Digital Panel Meter
Sub Component
LCD
(Instrument-Sensor) Temperature Range
32 - 122°F/0 - 50°C
(Instrument-Sensor) Measurement Accuracy
0.05%
Manufacturer
Dwyer Instruments
Features
Panel mount for quick installation
3-1/2 or 4-1/2 digit with 0.45˝ or 1˝ segments
Colored segments available in black, red, amber, green, or blue
Jumper selectable engineering units and decimal point positions
