Dwyer DPML-400P LCD Digital Panel Meter
Normally In Stock
Code: 570873
Dwyer DPML-400P - DPML-400P 4-20 MA NO BKLIGHT
Condition: New
Usually ships Same Day or Next Day$206.00
Sale Price
$171.67
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

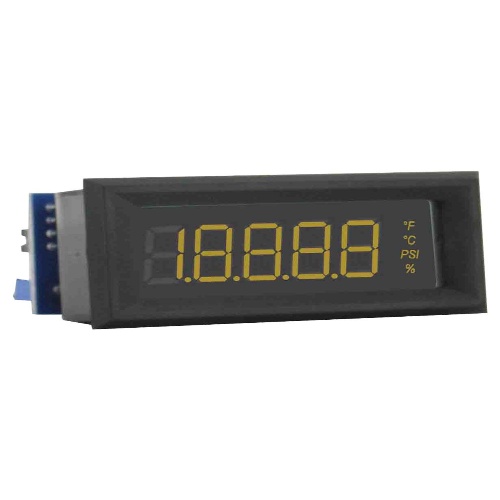

Dwyer DPML-400P is an LCD Digital Panel Meter with a temperature range of 32 to 122°F (0 to 50°C) and an accuracy of ±(0.1% FS + 2 count). It has adjustable zero and span adjustments up to ±19999 counts and a mounting option of snap-in bezel. The display is 4-1/2 digits with 7 segments and a size of 0.45" (11.4 mm) H. It has screw terminals for easy connection and accepts input of 4 to 20 mA or 0 to 200 mVDC, 0 to 5 VDC, or 0 to 10 VDC. The conversion rate is 3 per second and it has a warm-up time of 10 minutes. The unit automatically displays "-" for polarity and has a backlight power supply of 24 VDC @ 35 mA typical.
Specifications
Component
Digital Panel Meter
(Instrument-Sensor) Measurement Accuracy
0.10%
Sub Component
LCD
(Instrument-Sensor) Temperature Range
32 - 122°F/0 - 50°C
Manufacturer
Dwyer Instruments
Features
Panel mount for quick installation
3-1/2 or 4-1/2 digit with 0.45˝ or 1˝ segments
Colored segments available in black, red, amber, green, or blue
Jumper selectable engineering units and decimal point positions
