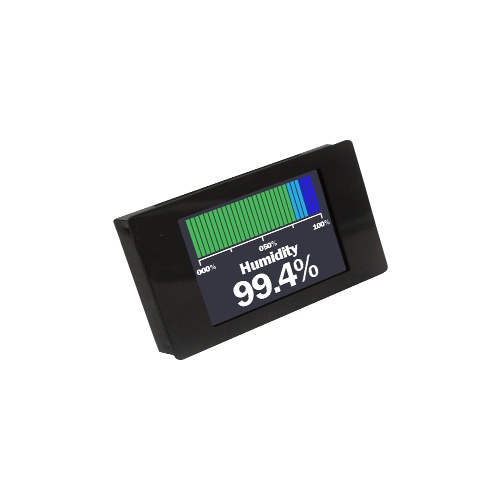

Dwyer SPPM-28 Smart Programmable Panel Meter
Normally In Stock
Code: 569625
Dwyer SPPM-28 - Smart Programmable Panel Meter with 2.8" display
Condition: New
Usually ships Same Day or Next Day$401.44
Sale Price
$334.53
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Dwyer SPPM-28 is a Smart Programmable Panel Meter with a 2.4", 2.8" or 3.5" TFT full-color display. It has an accuracy of ±2.0°F (±1.0°C) and a temperature range of 32 to 104°F (0 to 40°C). It is powered by a USB port and has an NEMA 4X (IP66) enclosure rating. The meter can be panel mounted and is suitable for indoor or outdoor use. It has a resolution of 320 x 240 pixels and can be powered by 4-30 VDC or USB. It has various connection options including screw terminals, pin connection, or USB. The meter has a current consumption of 190 mA max and a sampling rate of 3 samples/second. It has a warm-up time of 30 seconds and is compatible with Windows® 7, Windows® 8, and Windows® 10.
Specifications
(Instrument-Sensor) IP Protection
IP54
(Instrument-Sensor) NEMA Protection
NEMA 13
(Instrument-Sensor) Measurement Accuracy
2°F
Component
Smart Programmable Panel Meter
(Instrument-Sensor) Measurement Accuracy
1°C
(Instrument-Sensor) Temperature Range
32 - 104°F/0 - 40°C
Manufacturer
Dwyer Instruments
Features
Available with 2.4˝, 2.8˝, or 3.5˝ color touch screen display
Free downloadable Windows® software allows the unit to be customized to specific applications
