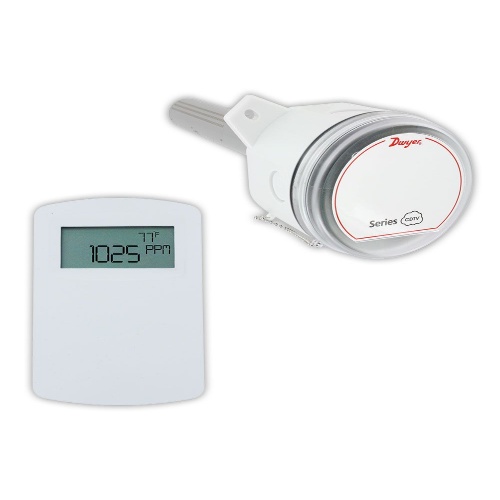

Dwyer CDTV-2D4F4 Carbon Dioxide Transmitter
Normally In Stock
Code: 568724
Dwyer CDTV-2D4F4 - Duct VOC & CO2 transmitter, universal analog outputs, 2000PPM CO2, 20K Ohm temperature sensor
Condition: New
Usually ships Same Day or Next Day$577.09
Sale Price
$480.91
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Dwyer CDTV-2D4F4 Carbon Dioxide Transmitter is a high-accuracy device suitable for monitoring CO2 levels in various environments. It has a temperature range of 32 to 122°F and operates on 16 to 35 VDC / 19 to 28 VAC power. With a response time of 2 minutes and a range of 0 to 2000 ppm, this transmitter provides reliable and precise readings. The enclosure rating is NEMA 4X for duct mount and IP20 for wall mount, ensuring durability. Equipped with a single-beam, dual-wavelength NDIR sensor, it offers output options including current, voltage, and relay. Consuming an average of 2 watts, it is energy-efficient. Overall, this carbon dioxide transmitter is a versatile and efficient solution for monitoring CO2 levels.
Specifications
(Instrument-Sensor) NEMA Protection
NEMA 4X
(Instrument-Sensor) Measurement Accuracy
3%
(Instrument-Sensor) IP Protection
IP66
(Instrument-Sensor) IP Protection
IP20
(Instrument-Sensor) Type
Carbon Dioxide
(Instrument-Sensor) Type
Vocs
(Instrument-Sensor) Temperature Range
32 - 122°F/0 - 50°C
(Instrument-Sensor) Supply Voltage
16-35 VDC
(Instrument-Sensor) Supply Voltage
19-28 VAC
Component
Carbon Dioxide Transmitter
Manufacturer
Dwyer Instruments
Features
Combination VOC and CO2 outputs reduce labor and material costs
Single beam dual wavelength NDIR CO2 sensor allows for use in spaces that may be occupied 24 hours a day
VOC output is correlated to be equivalent to CO2 measurements
Ventilate using ASHRE’s occupancy-based VRP Algorithm
