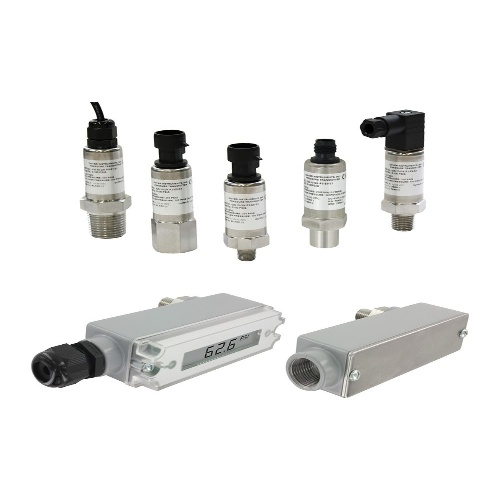

Dwyer 628-11-CB-P1-E5-S1 Industrial Pressure Transmitter
Normally In Stock
Code: 568182
Dwyer 628-11-CB-P1-E5-S1 - Industrial pressure transmitter, range 0-150 psig, conduit box housing, 1/4" male NPT, 1/2" female NPT conduit connection, 4-20 mA, max. pressure 300 psig, over pressure 750 psig.
Condition: New
Usually ships Same Day or Next Day$227.56
Sale Price
$189.63
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Dwyer 628-11-CB-P1-E5-S1 is an industrial pressure transmitter with a temperature range of 0 to 200°F (-18 to 93°C). It offers high accuracy, with 0.25% FS for 626 models and 1.0% FS for 628 models. The transmitter has various power requirements and output signals options. It has a fast response time of 300 ms and is suitable for use with compatible gases and liquids. It has a NEMA 4X (IP66) enclosure rating and can be mounted in any orientation. The wetted material is type 316L stainless steel. The transmitter's thermal effect is ±0.02% FS/°F and it has a loop resistance of 0-1000 Ω max. Current consumption ranges from 10 mA to 140 mA depending on the output type. Overall, the Dwyer 628-11-CB-P1-E5-S1 is a reliable and versatile pressure transmitter for industrial applications.
Specifications
(Instrument-Sensor) Measurement Accuracy
0.25%
(Instrument-Sensor) NEMA Protection
NEMA 4X
(Instrument-Sensor) IP Protection
IP66
(Instrument-Sensor) Supply Voltage
5 VDC
(Instrument-Sensor) Application
Liquid
(Instrument-Sensor) Application
Gas
(Instrument-Sensor) Supply Voltage
10-30 VDC
(Instrument-Sensor) Supply Voltage
10-35 VDC
Component
Industrial Pressure Transmitter
(Instrument-Sensor) Measurement Accuracy
0.20%
(Instrument-Sensor) Measurement Accuracy
1.0%
(Instrument-Sensor) Measurement Accuracy
0.30%
(Instrument-Sensor) Temperature Range
0 - 200°F/-18 - 93°C
(Instrument-Sensor) Supply Voltage
13-30 VDC
(Instrument-Sensor) Supply Voltage
13-35 VDC
(Instrument-Sensor) Supply Voltage
16-33 VAC
(Instrument-Sensor) Measurement Accuracy
0.50%
Manufacturer
Dwyer Instruments
Features
NEMA 4X rated enclosure provides protection in harsh environments permitting outdoor monitoring or in areas where dust and particulate matter exists
Robust 316L SS oil filled sensor provides shock and vibration resistance insuring stability in controlling pressure for process applications
A wide range of models and connections that can meet pressure measurement specifications from low to very high
