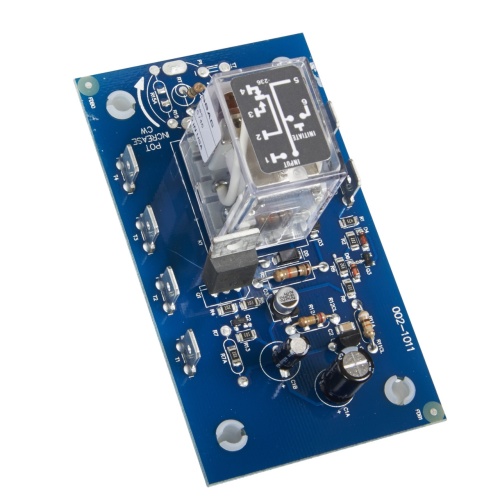

Littelfuse ORB24A25 Time Delay Relay - 24 Volt, Double Throw, Single Pole, Double Pole
Normally In Stock
Code: 566346
Littelfuse ORB24A25 - Delay On Break Timer Series - 24 Volt - Surface mount with 4 #6 (M3.5 x 0.6) screws - 10 A resistive @ 120/240 V ac and 28 V dc; 1/3 hp @ 120/240 V ac (MUST BUY IN PACKS OF 10)
Condition: New
Usually ships Same Day or Next Day$103.68
Sale Price
$86.40
MUST BUY IN PACKS OF 10
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Littelfuse ORB24A25 is a versatile product with a 10A resistive output load rating that works with both AC and DC power sources. It features 0.25-inch male quick connect terminals for easy installation. With an input tolerance of -15% to 20%, it offers precise and reliable performance. It consumes only 2.25W of power and has a life expectancy of 1 x 10⁵ electrical cycles. The ORB24A25 boasts a quick reset time of ≤50ms and a time delay accuracy of ±2% or 20ms.
Specifications
Relay Throws
Double Throw
Relay Poles
Double Pole
Relay Poles
Single Pole
Relay Timing Range
3 - 300 S
Manufacturer
Littelfuse
Component
Time Delay Relay
Coil Voltage Rating
24 Volt
Relay Mounting
Surface Mount
Sub Component
Delay On Break
