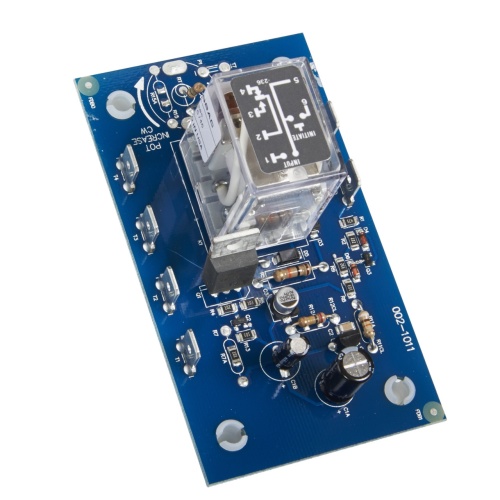

Littelfuse ORB24A11D is a compact and reliable time delay relay with a load rating of 10 A resistive at 120/240 V ac and 28 V dc. It features 0.25 in. (6.35 mm) male quick connect terminals for easy installation. With an input tolerance of -15% to 20% and repeat accuracy of ±2% or 20 ms, it ensures precise and consistent performance. The relay has a compact design and low power consumption of 2.25 W. It operates on analog time delay with a tolerance of ±10% and has a reset time of ≤50 ms. With a life expectancy of 1 x 10⁵ electrical cycles and 1 x 10⁷ mechanical cycles, it offers long-term reliability. The initiate time is ≤70 ms, making it quick and efficient to use.
