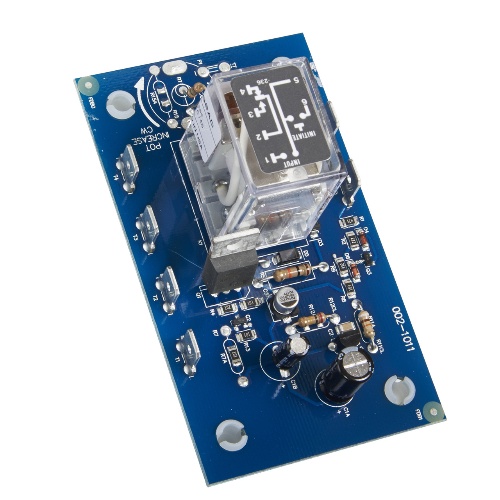

Littelfuse ORB120A160 Time Delay Relay - 120 Volt, Double Throw, Single Pole, Double Pole
Normally In Stock
Code: 566342
Littelfuse ORB120A160 - Delay On Break Timer Series - 120 Volt - Surface mount with 4 #6 (M3.5 x 0.6) screws - 10 A resistive @ 120/240 V ac and 28 V dc; 1/3 hp @ 120/240 V ac (MUST BUY IN PACKS OF 10)
Condition: New
Usually ships Same Day or Next Day$103.68
Sale Price
$86.40
MUST BUY IN PACKS OF 10
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Littelfuse ORB120A160 is a versatile product with a load rating of 10A resistive at 120/240V AC and 28V DC, making it suitable for various applications. It features 0.25 in. male quick connect terminals for easy installation. With an input tolerance of -20% to 10% and ±2% or 20ms repeat accuracy, this product ensures precise operation. The analog time delay type, ≤±10% setpoint accuracy, and quick reset time of ≤50ms further enhance its performance. It also offers durability with an electrical life of 1 x 10⁵ cycles and mechanical life of 1 x 10⁷ cycles.
Specifications
Relay Throws
Double Throw
Relay Poles
Double Pole
Relay Poles
Single Pole
Manufacturer
Littelfuse
Component
Time Delay Relay
Coil Voltage Rating
120 Volt
Relay Mounting
Surface Mount
Relay Timing Range
60 S
Sub Component
Delay On Break
