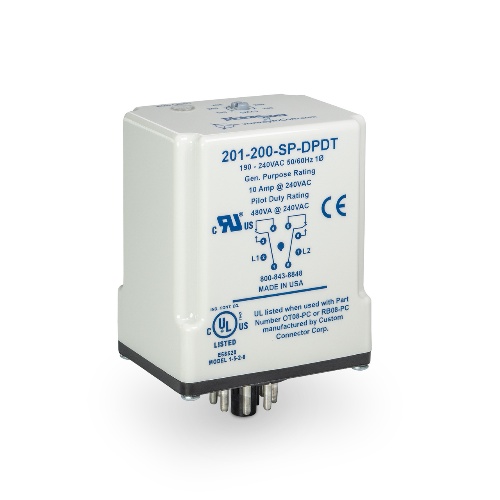

Littelfuse 201-200-SP-DPDT is a versatile relay with a pilot duty load rating of 480 VA at 240 volts and a general purpose load rating of 10 A at 240 volts. It offers torque termination of 12 in-lbs., accommodating 12-22 AWG solid or stranded wires. With an adjustable trip delay range, accurate trip point accuracy of ±1%, and a humidity tolerance of 10-95%, it is suitable for various applications. The relay has an undervoltage trip voltage of 90% and a restart delay range of 2 s. It operates on both 50 and 60 Hz AC line frequencies, with the 50 Hz option increasing all delay timers by 20%. The undervoltage reset voltage is 93%.
