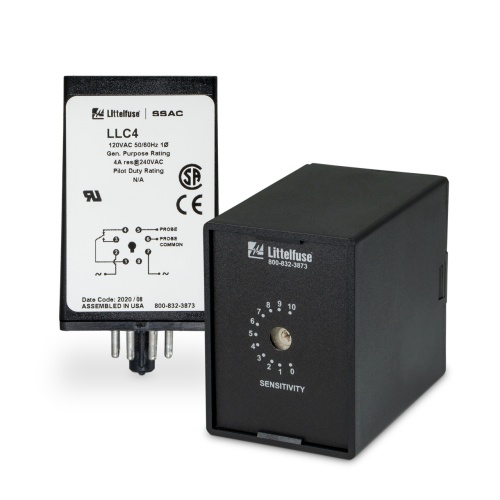

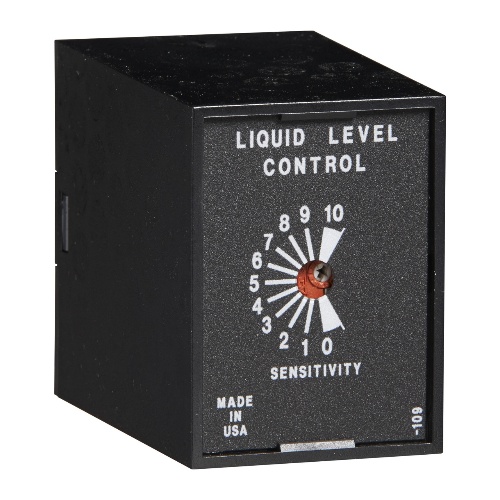

Littelfuse LLC44B5F100 Liquid Level Control - 120 Volt, Double Throw, Single Pole
Normally In Stock
Code: 565356
Littelfuse LLC44B5F100 - LLC4 Series – Liquid Level Controller Series - 120 Volt - Plug-in socket - 4 A resistive @ 240 VAC and 28 VDC; 1/10 hp @ 240 VAC
Condition: New
Usually ships Same Day or Next Day$143.15
Sale Price
$119.29
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Littelfuse LLC44B5F100 is an octal 8-pin plug-in power relay suitable for various applications. With an output load rating of 4A resistive @ 240V/28V DC and 1/10hp @ 240V, it offers reliable performance. It features surge protection according to IEEE C62.41-1991 Level A standards and has a sense resistance of 100 Ohms and a sense voltage of 12V. The control type is ON/OFF, and it has a built-in time delay to prevent rapid cycling. With a tolerance of ±10% or 500Ω, whichever is greater, it ensures precision.
Specifications
Relay Throws
Double Throw
Relay Poles
Single Pole
Component
Level Monitoring Relay
Manufacturer
Littelfuse
Coil Voltage Rating
120 Volt
Relay Mounting
Plug-In Socket
Relay Timing Range
5 S
Features
Isolated 12 V ac voltage on probes
Industry standard 8-pin octal plug connection
Sensitivity adjustment
