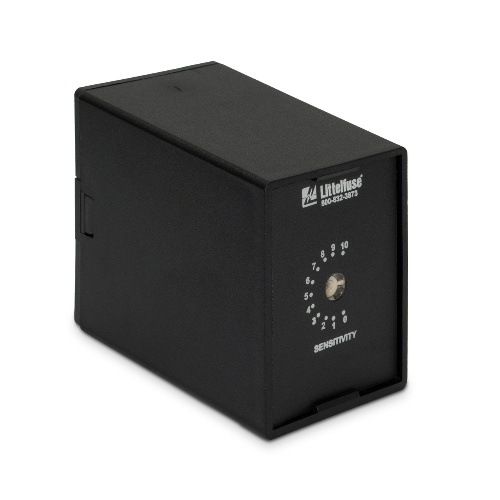

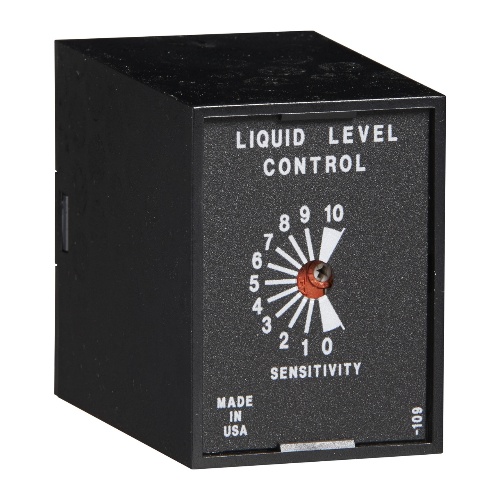

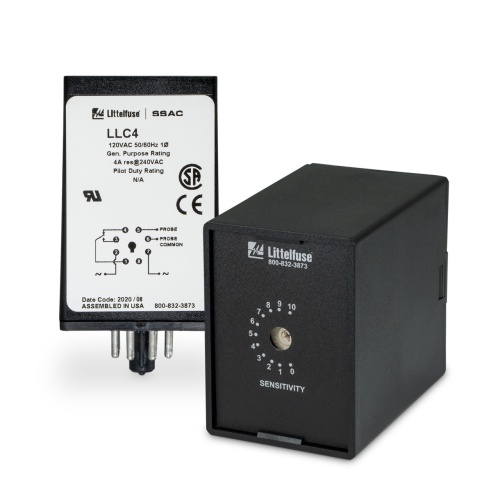

Littelfuse LLC42B15A Liquid Level Control - 24 Volt, Double Throw, Single Pole
Normally In Stock
Code: 565343
Littelfuse LLC42B15A - LLC4 Series – Liquid Level Controller Series - 24 Volt - Plug-in socket - 4 A resistive @ 240 VAC and 28 VDC; 1/10 hp @ 240 VAC
Condition: New
Usually ships Same Day or Next Day$136.32
Sale Price
$113.60
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Littelfuse LLC42B15A is an 8-pin plug-in relay with a 4A load rating at 240V and 28V (DC) and 1/10 hp at 240V. It offers surge protection and a sense voltage of 12V. With an adjustable sense resistance up to 250 ohms, it has an ON/OFF control type with a built-in time delay and a sense resistance tolerance of 1kΩ ±500 at the low end and 250kΩ ±25% at the high end. The input AC line frequency can handle 50/60Hz and the termination type is octal.
Specifications
Relay Throws
Double Throw
Relay Poles
Single Pole
Component
Level Monitoring Relay
Manufacturer
Littelfuse
Coil Voltage Rating
24 Volt
Relay Mounting
Plug-In Socket
Relay Timing Range
15 S
Features
Isolated 12 V ac voltage on probes
Industry standard 8-pin octal plug connection
Sensitivity adjustment
