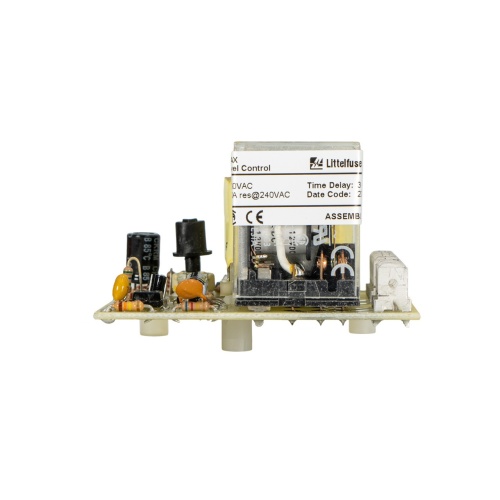

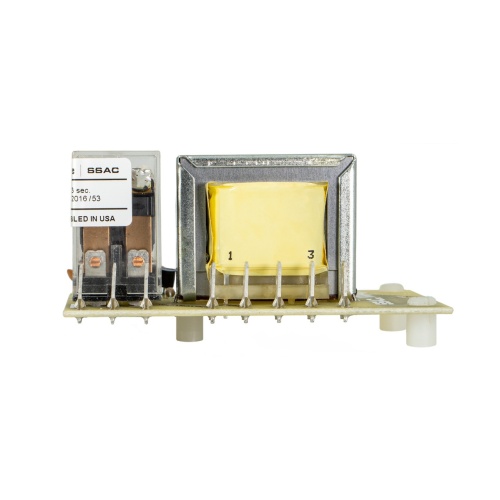

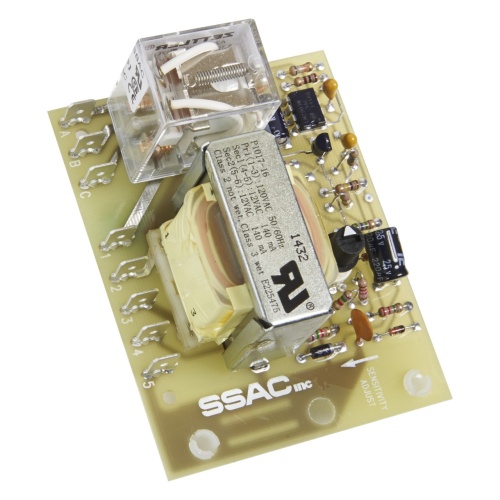

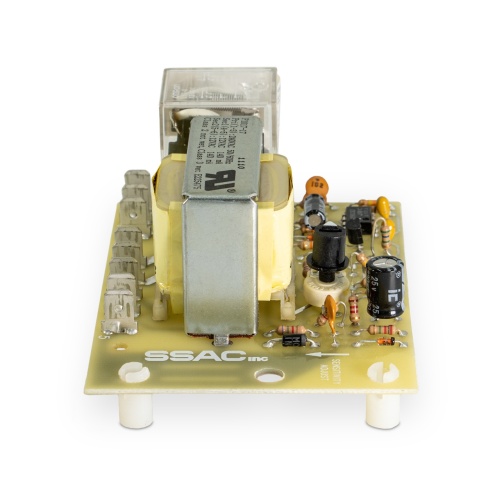

Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
Littelfuse LLC16A3AX Liquid Level Control - 230 Volt, Double Throw, Single Pole
Normally In Stock
Code: 565335
Littelfuse LLC16A3AX - LLC1 Series – Open Board Liquid Level Controls Series - 230 Volt - 0.50 in. (12.7mm) nylon standoffs with three #6 (M3.5 x 0.6) screws (use terminal 5 for probe common)
Condition: New
Usually ships Same Day or Next Day$143.15
Sale Price
$119.29
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Littelfuse LLC16A3AX is a versatile and reliable surge protection product. With an output load rating of 10A resistive @ 120/240V and 28V DC, it can handle a variety of applications. Equipped with 0.25 in. male quick connect terminals and adjustable sense resistance of up to 250 ohms, it ensures easy installation and customization. The ON/OFF control type with a built-in time delay prevents rapid cycling. It provides surge protection according to the IEEE C62.41-1991 Level A standard, making it suitable for industrial use. Additionally, the device offers low voltage AC sensing with isolation from input and output for added safety.
Specifications
Relay Throws
Double Throw
Relay Poles
Single Pole
Component
Level Monitoring Relay
Manufacturer
Littelfuse
Coil Voltage Rating
230 Volt
Relay Mounting
Screw
Relay Timing Range
3 S
Features
Isolated ac voltage on probe
Open PCB design
Conformally coated PCB
Sensitivity adjustment
