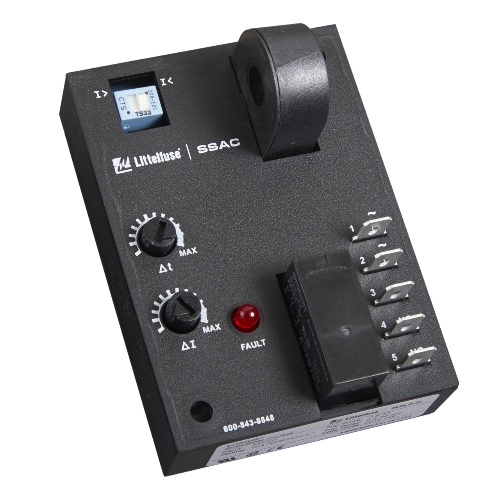

Littelfuse ECSH61AD Current Monitoring - 230 Volt, Double Throw, Single Pole
Normally In Stock
Code: 565306
Littelfuse ECSH61AD - ECS Series - 230 Volt - Surface mount with two #6 (M3.5 x 0.6) screws - 10 A resistive @ 240 VAC; 1/4 hp @ 125 VAC; 1/2 hp @ 250 VAC
Condition: New
Usually ships Same Day or Next Day$223.09
Sale Price
$185.91
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Littelfuse ECSH61AD is a compact and versatile electronic motor overload relay. It has a load rating of 10A resistive @ 240V, making it suitable for various applications. With 0.25 inch male quick connect terminals and 5 termination points, it offers easy installation. Its trip delay range is adjustable from 0.150 to 7s, ensuring precise protection. The sensor type is toroid with through-hole wiring, and it operates in peak detection mode. Trip point range is adjustable from 2 to 20, with a trip point hysteresis of ±5%.
Specifications
Relay Throws
Double Throw
Relay Poles
Single Pole
Component
Current Monitoring Relay
Manufacturer
Littelfuse
Coil Voltage Rating
230 Volt
Relay Mounting
Surface Mount
Features
Built-in toroidal current sensing
Encapsulated
Adjustable mode, trip point and trip delay
10A, SPDT isolated relay output
