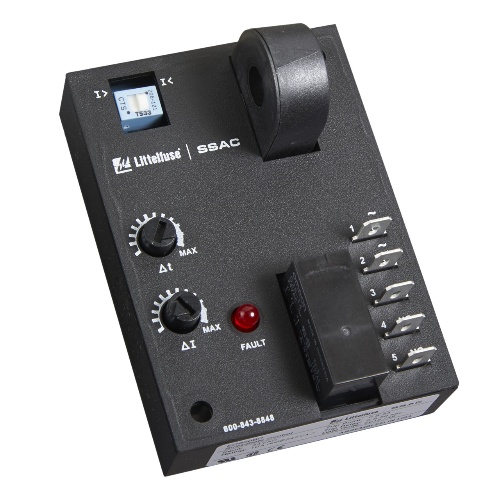

Littelfuse ECSH4HF.08D Current Monitoring - 120 Volt, Double Throw, Single Pole
Normally In Stock
Code: 565305
Littelfuse ECSH4HF.08D - ECS Series - 120 Volt - Surface mount with two #6 (M3.5 x 0.6) screws - 10 A resistive @ 240 VAC; 1/4 hp @ 125 VAC; 1/2 hp @ 250 VAC
Condition: New
Usually ships Same Day or Next Day$223.09
Sale Price
$185.91
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Littelfuse ECSH4HF.08D is a 10A resistive output load rating device suitable for use with 240V AC line frequency. It features 0.25in male quick connect terminals, ±20 to 10% input tolerance, and a trip delay range of 0.08s fixed. With a response time of ≤75ms, peak detection, and a trip point range of 5-50 adjustable, it offers reliable over or undercurrent protection. Additional features include a maximum current sensor range of 50A turns and ±15% trip delay vs temperature.
Specifications
Relay Throws
Double Throw
Relay Poles
Single Pole
Component
Current Monitoring Relay
Manufacturer
Littelfuse
Coil Voltage Rating
120 Volt
Relay Mounting
Surface Mount
Features
Built-in toroidal current sensing
Encapsulated
Adjustable mode, trip point and trip delay
10A, SPDT isolated relay output
