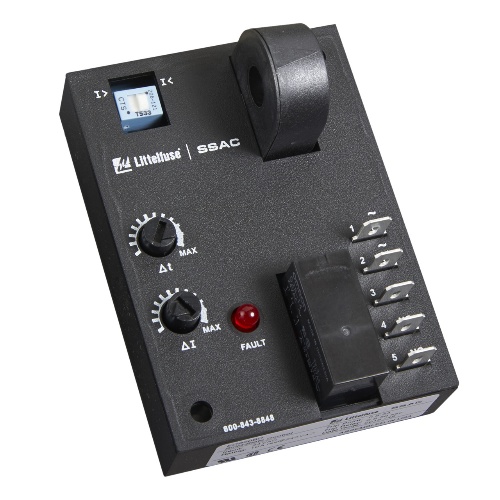

Littelfuse ECSH4HAD Current Monitoring - 120 Volt, Double Throw, Single Pole
Normally In Stock
Code: 565304
Littelfuse ECSH4HAD - ECS Series - 120 Volt - Surface mount with two #6 (M3.5 x 0.6) screws - 10 A resistive @ 240 VAC; 1/4 hp @ 125 VAC; 1/2 hp @ 250 VAC
Condition: New
Usually ships Same Day or Next Day$223.09
Sale Price
$185.91
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Littelfuse ECSH4HAD is a versatile over/undercurrent motor load sensor with a voltage rating of 240 Volts and output load capacities of 10A resistive, 1/4 hp @ 125 Volts, and 1/2 hp @ 250 Volts. It features a trip delay range of 0.150-7s, adjustable trip point range of 5-50, and quick connect terminals. With a response time of ≤75ms and peak detection technology, it offers reliable protection for motor loads in various industrial applications.
Specifications
Relay Throws
Double Throw
Relay Poles
Single Pole
Component
Current Monitoring Relay
Manufacturer
Littelfuse
Coil Voltage Rating
120 Volt
Relay Mounting
Surface Mount
Features
Built-in toroidal current sensing
Encapsulated
Adjustable mode, trip point and trip delay
10A, SPDT isolated relay output
