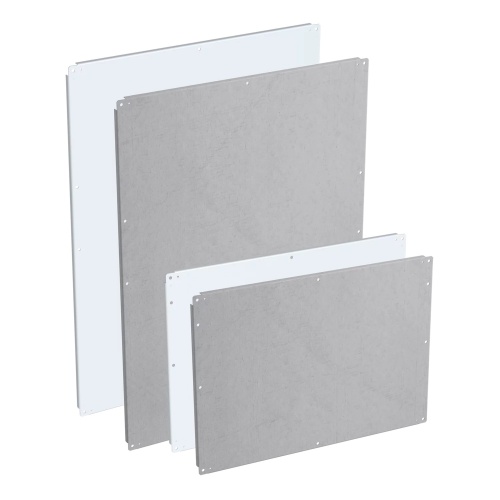

nVent Hoffman A72P72F2 Steel Backplate Half Panel
Normally In Stock
Code: 5467
nVent Hoffman A72P72F2 Steel Backplate (Half Panel) fits 72.00 x 72.000 enclosure. For Single Access, Dual Access, and Fiberglass Freestanding enclosures. Panels are 12 gauge steel and can be positioned anywhere along horizontal mounting channels. Half-length panels can be located in the upper or lower portion of the enclosure.
Condition: New
Usually ships Same Day or Next Day$1197.52
Sale Price
$997.93
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
This nVent Hoffman A72P72F2 Steel Backplate (Half Panel) is designed to fit 72.00 x 72.000 free-stand Type 4, 4X and Single- and Dual-Access one-door enclosures. Made of 12 gauge steel and finished with white polyester powder paint, this half panel can be positioned in the uppper or lower portion of the enclosure.
Specifications
Backplate Composition
Steel
Backplate For Enclosure NEMA Rating
Type 12
Backplate For Enclosure NEMA Rating
Type 4X
Backplate Environment Rating
Outdoor-Indoor
Backplate For Enclosure Height
72"
Backplate For Enclosure Width
72"
Backplate Size
Half Height
Component
Backplate
Sub Component
Steel Backplate Half Panel
Backplate Width
31"
Backplate Depth
68"
Manufacturer
Hoffman
Features
Plated mounting hardware is provided
Available in Full-Length and Half-Length
Downloads
Hoffman A72P72F2 2D DXF CAD.zipHoffman A72P72F2 3D STEP CAD.zipHoffman A72P72F2 CAD Drawing.zipHoffman A72P72F2 Declaration of Compliance.pdfHoffman A72P72F2 Dimension Drawing.gifHoffman A72P72F2 EU Certification.pdfHoffman A72P72F2 Instruction Manual.pdfHoffman A72P72F2 Spec Sheet.pdfHoffman A72P72F2 User Manual.pdf
