Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
Code: 494783

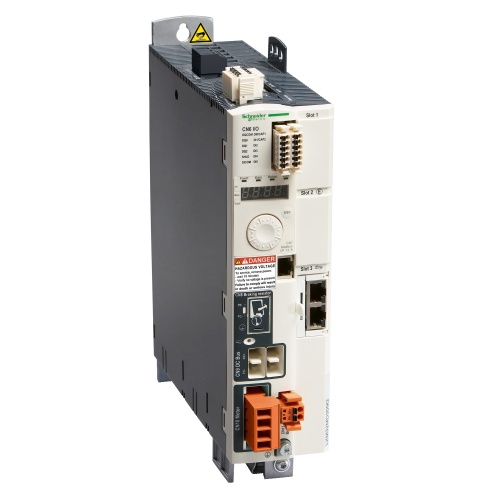

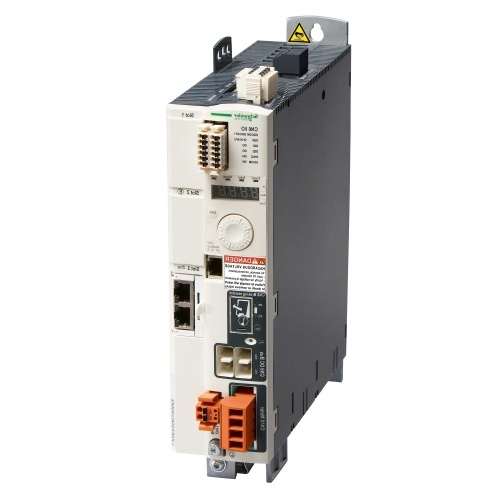

Schneider Electric LXM32SD30N4 motion servo drive, Lexium 32, 10A, three phase, supply voltage 208 to 480V, 3kW
Normally In Stock
Schneider Electric LXM32SD30N4 motion servo drive, Lexium 32, 10A, three phase, supply voltage 208 to 480V, 3kW *We recommend adding a reactor to mitigate harmonics and protect the drive from surges.
Condition: New
Usually ships within 3 business days$4568.44
Sale Price
$3807.03
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Schneider Electric LXM32SD30N4 is a three-phase servo drive with a returnable design. It operates at a rated supply voltage of 200-240 V and 380-480 V, with a maximum continuous power of 2600 W. This drive is compatible with the BMH 3.94 in servo motor, includes an integrated fan for cooling, and offers communication interfaces such as Modbus and SERCOS III. It comes in a compact S03 package and has a wide operating altitude range of up to 3280.84 ft. Additionally, it features safety functions like STO (safe torque off), integrated EMC filters, and meets various standards including EN/IEC 61800-3 and EN/IEC 61508.
Specifications
VFD Amperage Output
10 Amp
Option Card Slots
Modbus
Manufacturer
Schneider Electric
VFD Horsepower Output
3.5 HP
VFD Input Voltage
480 Volt Three Phase
VFD Output Voltage
480 Volt Three Phase
Option Card Slots
Integrated
Option Card Slots
SERCOS III
Features
Lexium 32 range provides the drive and motor combinations for right power, performance and functionality
Three book-size servo drive models and two servo motor families plus a full range of intelligent options
Lexium 32 simplifies all aspects in the machine lifecycle from engineering to maintenance
