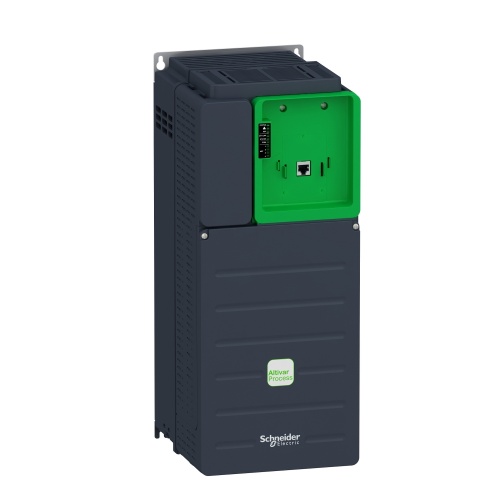

Schneider Electric ATV630D15N4ZU Variable speed drive, Altivar Process ATV600, ATV630, cabinet Integration, IP20, 15 kW, 380...480 V, for US
Normally In Stock
Code: 494725
Schneider Electric ATV630D15N4ZU Variable speed drive, Altivar Process ATV600, ATV630, cabinet Integration, IP20, 15 kW, 380...480 V, for US *We recommend adding a reactor to mitigate harmonics and protect the drive from surges.
Condition: New
Usually ships within 3 business days$3837.44
Sale Price
$3197.87
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Schneider Electric ATV630D15N4ZU is a 3-phase variable speed drive suitable for a range of applications including HVAC, food and beverage processing, mining, oil and gas, and water and waste water. It has a rated supply voltage of 380-480V and a continuous output current of 31.7A. With a wide range of standards and certifications, this drive offers advanced features such as safe torque off (STO) SIL 3 safety function and integrated EMC filters. It also includes various communication options and has a compact design for easy installation.
Specifications
VFD Horsepower Output
20 HP
Manufacturer
Schneider Electric
VFD Input Voltage
480 Volt Three Phase
VFD Output Voltage
480 Volt Three Phase
Features
Pump efficiency tracking
Multi master-slave pump management
Pump and pipe protection
Fan management
>95% accurate energy consumption measurement
STO: Safe Torque Off
Embedded: Ethernet, Modbus
Options: Ethernet IP, Modbus TCP, CANopen (RJ45 Daisy chain, Sub-D, screw terminals), PROFINET, Profibus DP V1, EtherCAT, DeviceNet, PowerLink, BACnet MS/TP
Power range: 0.75 kW to 2600 kW
Voltage range: 200 – 400 – 690 V Three-phase
Motor type: Induction, PM, Reluctance, IE2-IE3-IE4 motors
Motor control type: Open-loop
THDI: THDi < 48%(Embedded), THDi<10% or THDi<5% with Passive filter or multi-pulse supply, THDi<= 3% with Low Harmonic module
