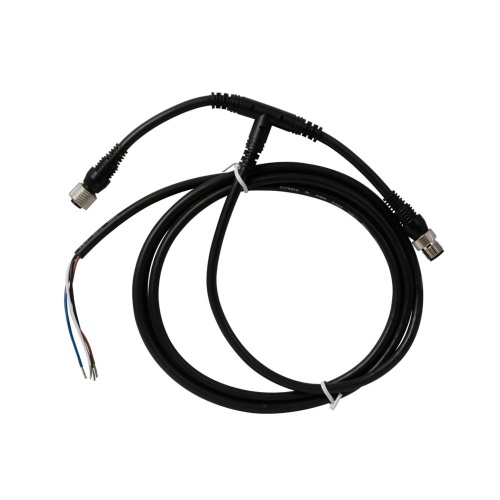

Eaton E68-SVSPR3-PLP Integral Sensor Valve

Eaton E68-SVSPR3-PLP - The E68 Series Integral Sensor Valve (ISV) by Eaton is a comprehensive solution for Zero Pressure Accumulation (ZPA) control, addressing product damage caused by outdated ZPA conveyors with mechanical sensor rollers. It comes with all necessary components, snaps together for easy installation, and reduces costs by integrating sensor, valve, and control logic in one device. Key features include non-contact ZPA, customizable algorithms, low-profile design, and compatibility with external control systems. It's a cost-effective and efficient way to modernize conveyor operations. -

Specifications
(Instrument-Sensor) NEMA Protection	NEMA 4
(Instrument-Sensor) NEMA Protection	NEMA 1
Manufacturer	Eaton
(Instrument-Sensor) Temperature Range	14 °F - 131 °F
(Instrument-Sensor) Supply Voltage	18-30 VDC
(Instrument-Sensor) Connection Type	4 Pin M12 Connector
(Instrument-Sensor) Type	Polarized Retroreflective
Component	Conveyor Sensor
Sub Component	Integral Sensor Valve
Line	E68
(Instrument-Sensor) Enclosure Composition	Structural Polyurethane Foam
