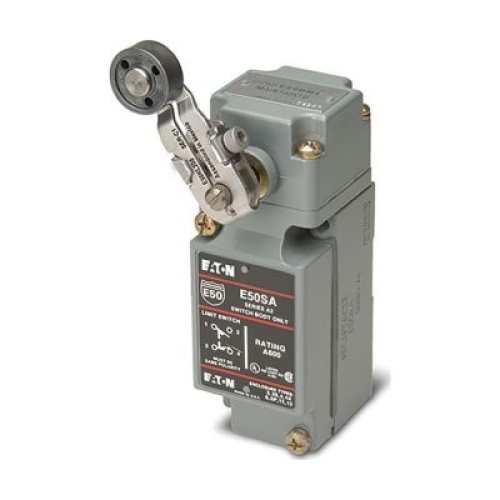

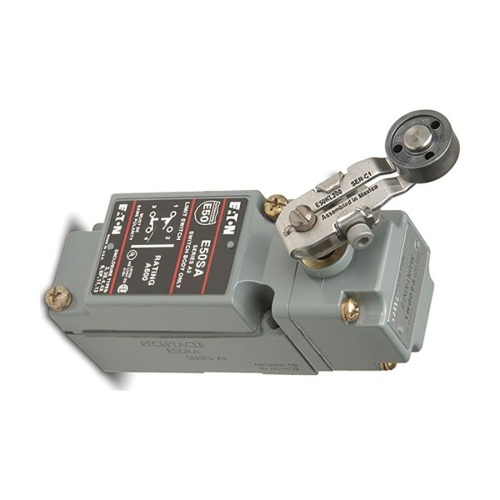

Eaton E50AR1P5-W Heavy-Duty Plug-In Limit Switch
Normally In Stock
Code: 449459
Eaton E50AR1P5-W - 5 Pin Mini Connector,10A at 240Vac,1A at 250Vdc,1NO-1NC,Die Cast Zinc,NEMA 1,3,3S,4,4X,6,6P,13,IP67,10A,1A,10° to 201°F (-12° to 94°C),Side Rotary
Condition: New
Usually ships Same Day or Next Day$779.66
Sale Price
$649.72
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Eaton E50AR1P5-W - E50 Modular Plug-In Limit Switch Components are a versatile and reliable choice for heavy-duty industrial applications. They offer design flexibility, withstand harsh environments, and come with chemical-resistant features. With modular, plug-in components, they reduce maintenance and inventory costs and simplify installation. These components can accommodate both U.S. and DIN standards for easy retrofitting. LED indicating lights aid in setup and troubleshooting. They are durable, rated for 600V, and provide a range of configuration options. These switches are designed for demanding industrial settings, making them a cost-effective and practical solution.
Specifications
Component
Limit Switch
(Instrument-Sensor) NEMA Protection
NEMA 4X
(Instrument-Sensor) IP Protection
IP67
(Instrument-Sensor) Contact Configuration
1 NO + 1 NC
(Instrument-Sensor) NEMA Protection
NEMA 4
(Instrument-Sensor) NEMA Protection
NEMA 13
(Instrument-Sensor) NEMA Protection
NEMA 1
(Instrument-Sensor) NEMA Protection
NEMA 6P
(Instrument-Sensor) NEMA Protection
NEMA 6
Manufacturer
Eaton
(Instrument-Sensor) NEMA Protection
NEMA 3
(Instrument-Sensor) NEMA Protection
NEMA 3S
(Instrument-Sensor) Connection Type
5 Pin Mini Connector
(Instrument-Sensor) Actuator
Side Rotary
(Instrument-Sensor) Contact Rating
10 Amp At 240 VAC
Sub Component
Heavy-Duty Plug-In Switch
(Instrument-Sensor) Enclosure Composition
Die Cast Zinc
(Instrument-Sensor) Contact Rating
1 Amp At 250 VDC
(Instrument-Sensor) Temperature Range
10 °F - 201 °F
Features
Modular, plug-in components (head, body and receptacle) provide application flexibility, reduced inventory and less downtime
Manufactured to take the physical and environmental abuse (including cutting fluids and chemicals) of harsh industrial environments
Chemical-resistant Viton gaskets, seals and boots are standard, and so are captive, posi-drive screws
The switches have terminal identification on the nameplate for a visual wiring checkout without guesswork. Heads and switch bodies can be replaced without rewiring
E50 devices can be ordered in separate components or as complete assembled switches
600 V rating, ridge-topped contacts and wiping action ensure continuity even to logic level circuits
Keyed, four-direction head positioning
Standard 5° pre-travel and 90° total travel
24–120 Vac/Vdc LED and 120 Vac neon indicating lights available
Rotary heads are field convertible CW, CCW, or both, without special tools
Epoxy filled, pin connector or pigtail pin connector receptacles available
