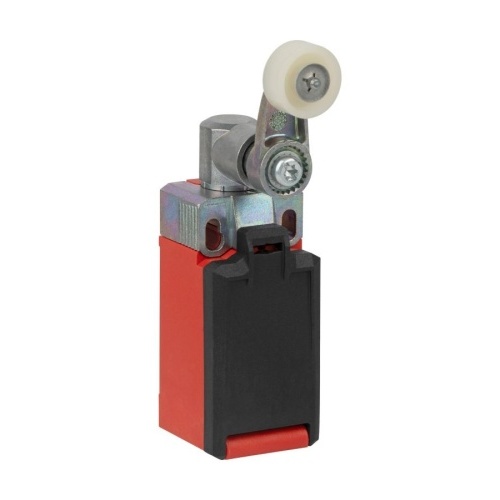

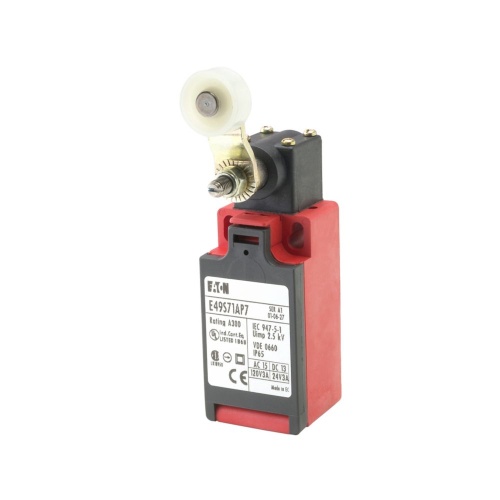

Eaton E49S71AP7 IEC Limit Switch
Normally In Stock
Code: 449307
Eaton E49S71AP7 - E49 IEC Limit Switch,1 Normally Open Contact/1 Normally Closed Contact,Side Rotary Lever
Condition: New
Usually ships Same Day or Next Day$111.78
Sale Price
$93.15
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Eaton E49S71AP7 - Eaton's E49 IEC Limit Switches offer precision and reliability in a compact design, making them ideal for a wide range of industrial applications. These switches are built to withstand harsh environments, featuring a rugged aluminum die-cast housing and exceptional resistance to contaminants, moisture, shock, and vibration. With various models and configurations available, the E49 switches provide versatile options for different sensing needs. They come with a selection of actuators, including lever arms, roller levers, and plungers, allowing for tailored solutions. Whether you need to monitor position, detect limits, or control machinery, Eaton's E49 IEC Limit Switches are a dependable choice for precise and durable performance.
Specifications
Component
Limit Switch
(Instrument-Sensor) NEMA Protection
NEMA 4X
(Instrument-Sensor) Connection Type
Screw Terminal
(Instrument-Sensor) IP Protection
IP65
(Instrument-Sensor) Contact Configuration
1 NO + 1 NC
(Instrument-Sensor) NEMA Protection
NEMA 4
(Instrument-Sensor) NEMA Protection
NEMA 13
(Instrument-Sensor) NEMA Protection
NEMA 6P
Manufacturer
Eaton
(Instrument-Sensor) Actuator
Side Rotary
(Instrument-Sensor) Contact Rating
10 Amp At 240 VAC
(Instrument-Sensor) Enclosure Composition
Self-Extinguishing PA-6 (Glass-Reinforced
(Instrument-Sensor) Enclosure Composition
Polyamide)
(Instrument-Sensor) Temperature Range
-22 °F - 176 °F
Sub Component
IEC Limit Switch
(Instrument-Sensor) Contact Rating
1.5 Amp At 30 VDC
Features
Rigid die-cast switch housing
High mechanical strength
Oil-tight, waterproof and dustproof construction
Snap action 1NO/1NC contacts provide flexibility in design
