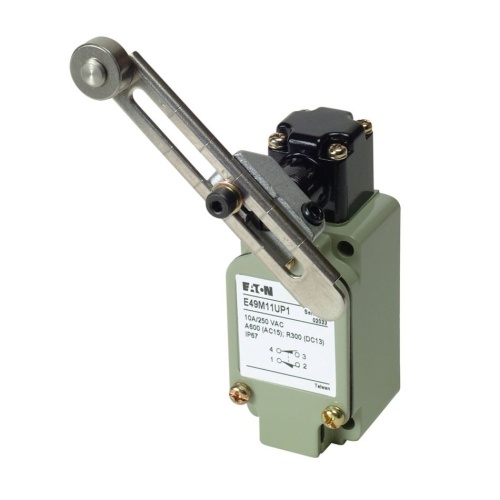

Eaton E49M11UP1 Compact Metal Limit Switch
Normally In Stock
Code: 449298
Eaton E49M11UP1 - Assembled Limit Switch, E49, Adjustable roller lever, Screw Terminals, 10A at 250 Vac, 1.5A at 24 Vdc, Standard DIN, 1 mm-2m/s, 1NO-1NC
Condition: New
Usually ships Same Day or Next Day$228.71
Sale Price
$190.59
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Eaton E49M11UP1 - E49 Compact Metal Switches, engineered by The electrical sector, are built with robust mechanical strength to withstand harsh environments. Their rugged die-cast aluminum construction ensures reliable, oil-tight, waterproof, and dustproof sealing, making them suitable for a wide range of applications. These switches feature snap-action 1NO-1NC contacts, offering flexibility in design. Key features include a rigid die-cast switch housing, high mechanical strength, and compliance with standards and certifications such as UL Listed (E170645), UL tested to Canadian safety standards, and RoHS compliance. These switches are a reliable choice for demanding industrial applications that require durability and environmental resistance.
Specifications
Component
Limit Switch
(Instrument-Sensor) Connection Type
Screw Terminal
(Instrument-Sensor) IP Protection
IP67
(Instrument-Sensor) Contact Configuration
1 NO + 1 NC
Manufacturer
Eaton
(Instrument-Sensor) Enclosure Composition
Die Cast Aluminum
(Instrument-Sensor) Actuator
Side Rotary
(Instrument-Sensor) Contact Rating
10 Amp At 250 VAC
(Instrument-Sensor) Temperature Range
14 °F - 176 °F
Sub Component
Compact Metal Switch
(Instrument-Sensor) Contact Rating
1.5 Amp At 24 VDC
Features
Rigid die cast switch housing
High mechanical strength
Oil-tight, waterproof and dustproof construction
