Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
Code: 444174

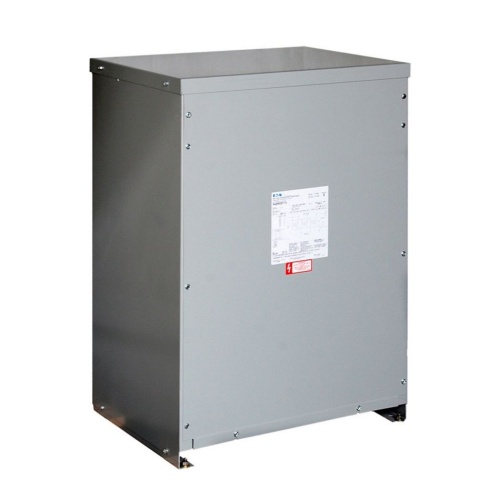

Eaton V48M24T30NV Totally Enclosed Non-Ventilated Transformer - Three Phase, 30 kVA
Normally In Stock
Eaton V48M24T30NV - Three Phase - Max Input: 480V - Max Output: 240V - 30 kVA - 60 Hz - 39.2" x 29" x 22" (HxWxD)
Condition: New
Usually ships Same Day or Next Day$13809.44
Sale Price
$11507.87
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Eaton V48M24T30NV - General-Purpose Transformer - Dry Type Distribution - DT-3 - Three-phase - PV: 480V - Taps: 2 at +2.5% FCAN - 4 at -2.5% FCBN - SV: 240 delta - 150°C - 30 kVA - Al windings - Frame: 914DN
Specifications
Transformer Voltage Phases
Three Phase
Transformer VoltAmp
30 Kva
Manufacturer
Eaton
Coil Material
Aluminum
Frequency Rating
60 Hz
Tap Size
4 At -2.5% FCBN
Tap Size
2 At +2.5% FCAN
Component
Totally Enclosed Non-Ventilated Transformer
Frame
914DN
Transformer Primary Voltage In
480 Volt
Transformer Secondary Voltage Out
240 Volt
Features
Includes transformers with DOE 2016 and NEMA TP-1 efficiency requirements, and transformers with other efficiency requirements
Ventilated dry-type distribution transformers provide options in aluminum or copper windings
Available in 150 °C, 115 °C, and 80 °C temperature rise
Optional low-sound 3 dB and 5 dB below NEMA ST-20 standard
Available in 60 and 50 Hz
NEMA 2 standard enclosures, NEMA 3R with field-installed weathershields
Transformers include a versatile bonding/grounding bar affixed to the bottom panel as standard, to provide compliance with NEC 450.10(A)
