Code: 443551

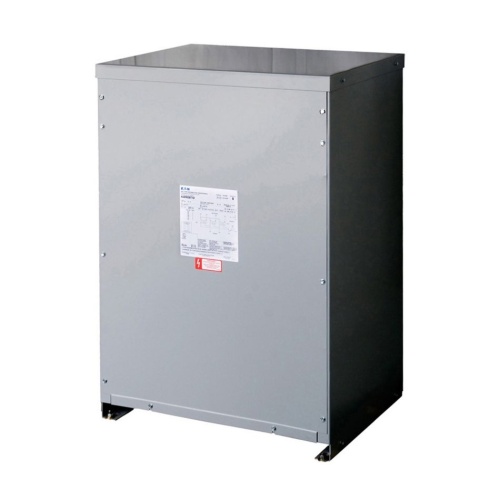

Eaton V48M24T3016 Ventilated Transformer - Three Phase, 30 kVA
Normally In Stock
Eaton V48M24T3016 - Three Phase - Max Input: 480V - Max Output: 240V - 30 kVA - 60 Hz - 36.9" x 24.9" x 21.1" (HxWxD)
Condition: New
Usually ships Same Day or Next Day*NON-CANCELLABLE, NON-RETURNABLE*
$5459.32
Sale Price
$4549.43
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Eaton V48M24T3016 - General purpose ventilated transformer - Fungus proof - AL windings - DOE 2016 - NEMA 2 - 30 kVA - Floor/wall mnt upright only - 3-phase - PV: 480V delta - SV: 240V delta - NEMA ST-20 - 2 at +2.5% - 4 at -2.5% - 30 kVA
Specifications
Transformer Voltage Phases
Three Phase
Transformer VoltAmp
30 Kva
Manufacturer
Eaton
Component
Ventilated Transformer
Mounting
Floor
Mounting
Wall
Coil Material
Aluminum
Frequency Rating
60 Hz
Enclosure
NEMA 2
Tap Size
4 At -2.5%
Tap Size
2 At +2.5%
Transformer Primary Voltage In
480 Volt
Transformer Secondary Voltage Out
240 Volt
Features
Includes transformers with DOE 2016 and NEMA TP-1 efficiency requirements, and transformers with other efficiency requirements
Ventilated dry-type distribution transformers provide options in aluminum or copper windings
Available in 150 °C, 115 °C, and 80 °C temperature rise
Optional low-sound 3 dB and 5 dB below NEMA ST-20 standard
Available in 60 and 50 Hz
NEMA 2 standard enclosures, NEMA 3R with field-installed weathershields
Transformers include a versatile bonding/grounding bar affixed to the bottom panel as standard, to provide compliance with NEC 450.10(A)
