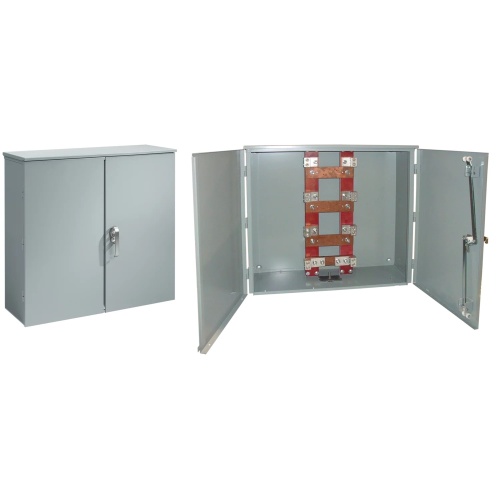

nVent Hoffman A800HCT1R Current Transformer Cabinets, 400-800 Amp, Type 3R
Normally In Stock
Code: 42935
nVent Hoffman A800HCT1R Current Transformer Cabinets, 400-800 Amp, Type 3R Outdoor-Indoor 36" x 36" x 11" (HxWxD) Steel Enclosure. Wall Mount Painted Steel with 3-Point with Handle latch Standard Hinge. (DOES NOT INCLUDE BACK PANEL)
Condition: New
Usually ships Same Day or Next DayDOES NOT INCLUDE BACK PANEL
$3962.45
Sale Price
$3302.04
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
nVent Hoffman A800HCT1R Current Transformer Cabinets, 400-800 Amp, Type 3R 400-800 Amp, Type 3R Current Transformer Cabinets (for Window-Type Current Transformers) provide Type 3R protection and a factory-installed wiring buss for 400-800 Amp, 600 VAC current transformers. The assembly has a 50 k AIC rating. Overlapping double-door model with 3-point latch and lift-off hinges, Includes padlock provisions in handle, Use with window-type current transformer with Drip-shield top and seam-free sides, front and back. Three removable copper buss bars, Buss bar cross section 3.00 in. x .25 in. (76 mm x 6 mm), Neutral bar, Aluminum mechanical lugs dual rated (Cu/Al), two conductor, Maximum conductor size 600 kcmil, Insulating bar mounting bracket 12 gauge painted steel with Mounting holes on back of enclosure.
Specifications
Enclosure knockouts
Includes Knockouts
Enclosure Environment Rating
Outdoor-Indoor
Enclosure Hinge Type
Standard Hinge
Enclosure Lock Type
Padlocking
Enclosure Interior Color
Gray
Enclosure Depth
11"
Enclosure Latch Type
3 Point
Enclosure Height
36"
Enclosure Width
36"
Enclosure Door Type
Solid
Enclosure Mount Type
Wall Mount
Enclosure Composition
Steel
Component
Commercial Enclosure
Enclosure Number of Doors
1 Door
Enclosure NEMA Rating
NEMA Type 3R
Enclosure Type
CT Cabinet
Manufacturer
Hoffman
Features
Use with window-type current transformer
Includes padlock provisions in handle
Mild steel hinges
Drip-shield top and seam-free sides, front and back
Door stop provision included
Overlapping double-door model with 3-point latch and lift-off hinges
Three removable copper buss bars
Maximum conductor size 600 kcmil
Aluminum mechanical lugs dual rated (Cu/Al), two conductor
Neutral bar
Buss bar cross section 3.00 in. x .25 in. (76 mm x 6 mm)
Insulating bar mounting bracket, 12-gauge painted steel
Mounting holes on back of enclosure
No gasketing or knockouts Ground stud provided
Enclosures are finished with paint over plated surfaces
No gasketing or knockouts
