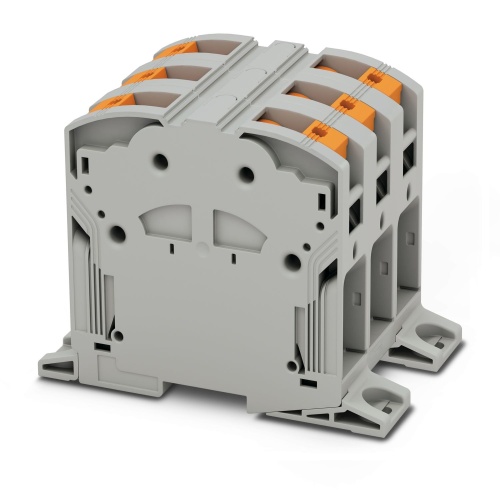

Phoenix Contact 1054735 High-current terminal block PTPOWER 185 3L-F
Normally In Stock
Code: 41585
PTPOWER 185 3L-F Phoenix Contact 1054735 High-current Terminal Block - PTPOWER 185 3L-F Power-Turn Connection 1 Level 93 mm with 2 Connections. Not Grounded, Not Fused Gray. 1500 V DC, 1000 V AC, 309 A max rating.
Condition: New
Usually Ships Same day or Next Day$166.14
Sale Price
$138.45
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 1054735 A high-current terminal block has been disabled for safety, with a nominal voltage rating of 1000 V and a maximum current capacity of 309 A. The block features six connections arranged across three positions, secured using the PowerTurn connection method at one level, while its cross-sectional area spans from 95 mm² to 185 mm². Mounting is achieved through direct screw connection, and the terminal block has a gray finish.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
1500 Volt
Terminal Block Fused
Not Fused
Terminal Block Number of Levels
1
Terminal Block Number of Connections
6
Terminal Block Width
93 mm
Terminal Block Component Color
Gray
Terminal Block Grounded
Not Grounded
Terminal Block Connection Method
Power-Turn Connection
Terminal Block Amperage
309 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
High Current Terminal Block
Sub Component
High-Current Terminal Block
Features
Quick and easy connection is now also possible for large conductors with the high-current terminal block
The compact design enables wiring in a confined space
The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free wiring of conductors with ferrules or solid conductors
In addition to using the existing test pick-off, pick-off terminal blocks can be connected, each of which can also accommodate two test cables
Downloads
Phoenix 1054735 Application Note International.jpgPhoenix 1054735 CAD data International.dxfPhoenix 1054735 CAD data International.pdfPhoenix 1054735 CAD data International.stpPhoenix 1054735 Manufacturers declaration International-2.pdfPhoenix 1054735 Manufacturers declaration International.pdfPhoenix 1054735 Package Slip International.pdfPhoenix 1054735 Safety note English.pdfPhoenix 1054735 Tender Text English.zip
